In the packaging and printing industry, a sample cutting machine is often judged by its software or the variety of its cutting heads. While those features are important, they only tell half the story. The real test of a CNC sample cutter happens under the hood. When processing heavy-duty honeycomb board, dense gray board, or thick double-wall corrugated cardboard, the machine’s mechanical drive system is put to the limit. If a cutter relies on cheap, easily stretched belt drives or underpowered stepper motors, you will quickly run into issues: jagged edges, shifting dimensions, and ruined materials.
For packaging manufacturers and sample makers managing high-mix, low-volume (HMLV) orders, precision is non-negotiable. Here is a look at the heavy-duty engineering inside the YITAI GBD2516 and how its premium drive systems deliver industrial-grade accuracy.
1. Belt vs. Gear Rack: The Lifespan and Precision Showdown
Many entry-level digital cutters on the market use rubber belt transmission systems to move the cutting gantry. While belts are cheap, they present major drawbacks in a professional workshop environment:
- Stretching and Backlash: Under the continuous acceleration and deceleration of high-speed cutting, belts naturally stretch over time. This introduces micro-errors in positioning.
- Vibration Under Load: When cutting dense materials like triple-wall corrugated or honeycomb board, the resistance of the material causes the belt to flex, leading to jagged cuts and inconsistent folding lines.
- Frequent Maintenance: Belts wear down, slip, and require regular tension adjustments to keep cuts accurate.

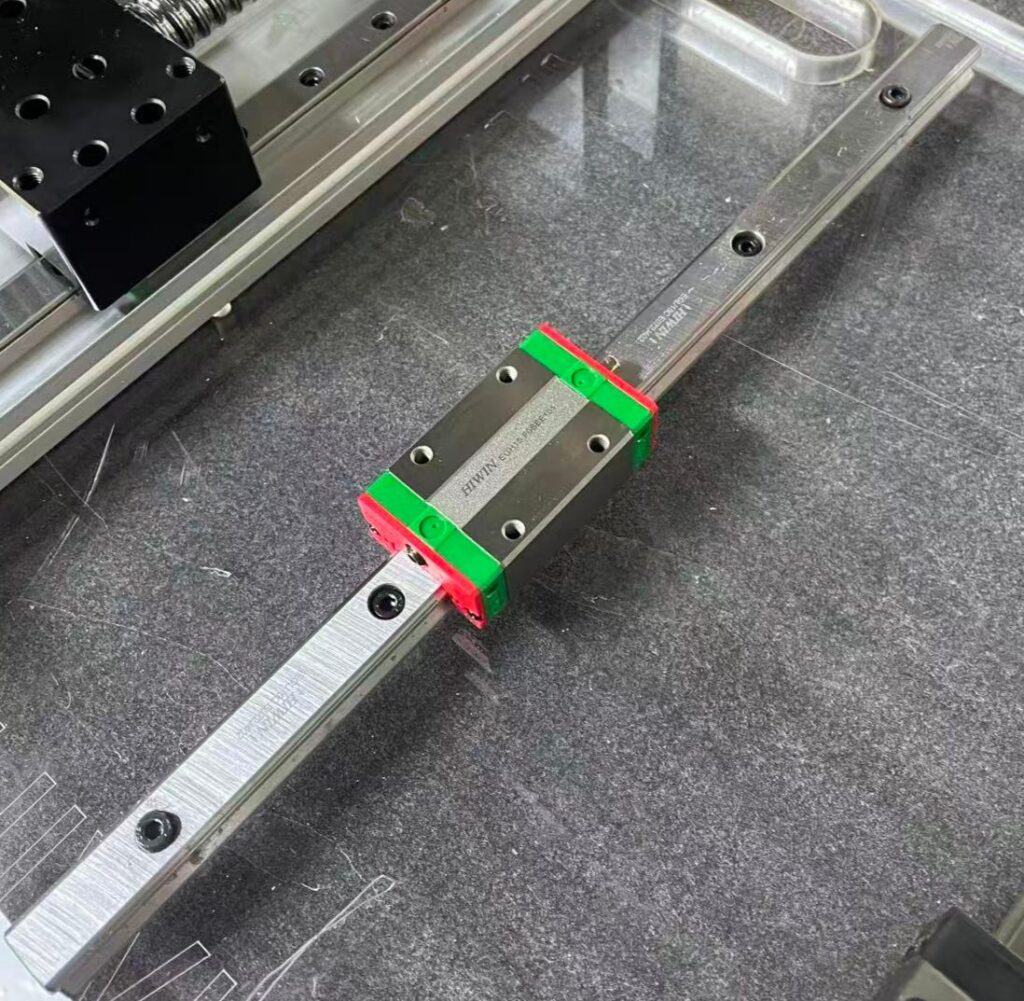

The GBD2516 Solution: Taiwan HIWIN Linear Guides & Precision Gear Racks

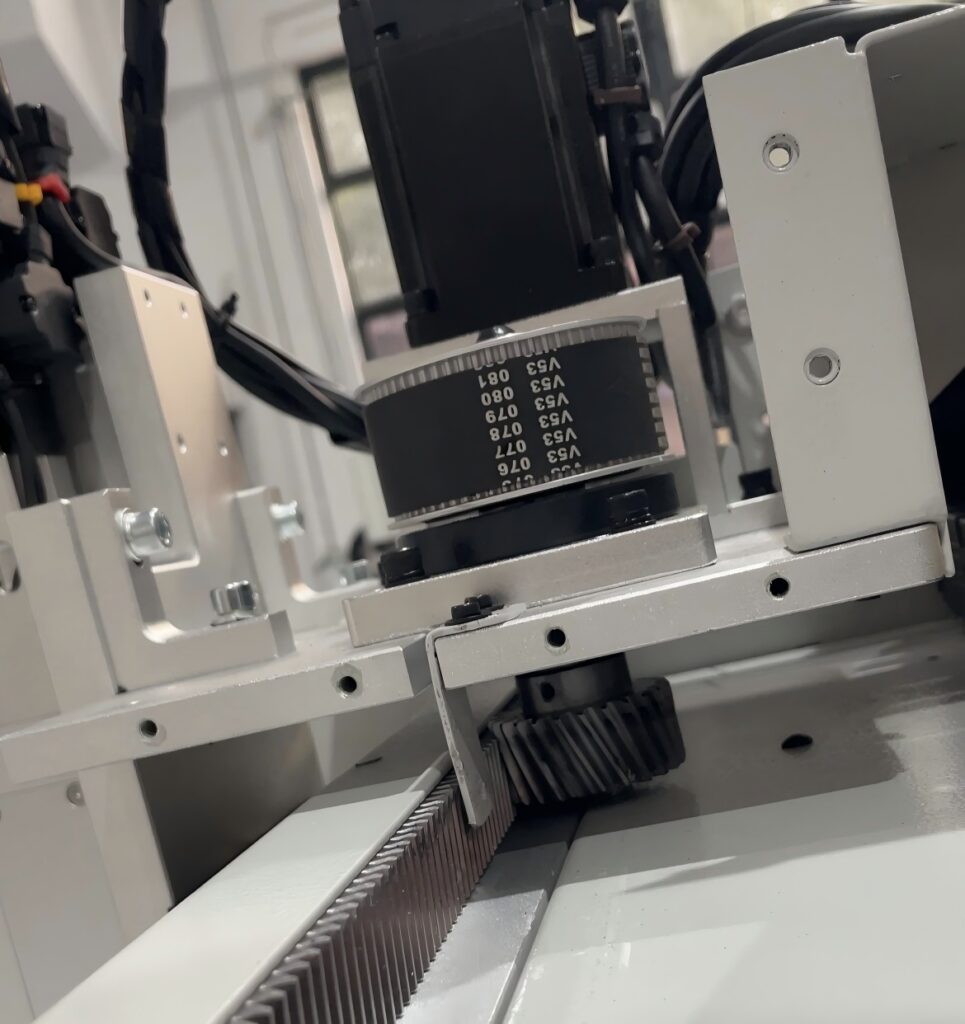

To eliminate the common limitations of belt-driven systems, the YITAI GBD2516 is engineered with Taiwan HIWIN linear guide rails paired with a steel gear rack transmission.
Unlike rubber belts that naturally stretch, lose tension, and introduce micro-deviations over time, a solid gear-to-gear mechanism does not flex under load. This mechanical rigidity allows the GBD2516 to maintain a consistent physical positioning accuracy of ±0.01 mm across its entire 1600 x 2500 mm working table.
By replacing flexible belts with a steel rack and pinion, the machine handles the physical resistance of dense, heavy boards without slipping. This ensures that your crease lines and cuts align accurately throughout the entire production run, minimizing material waste and reducing the need for manual alignment adjustments.
2. Powering the Cut: High-Performance Servo System vs. Standard Stepper Motors
While the transmission ensures structural accuracy, the motors determine how reliably the machine performs under workload. Many standard sample cutters in the budget segment utilize basic stepper motors, which can struggle with speed and torque consistency when cutting denser materials.

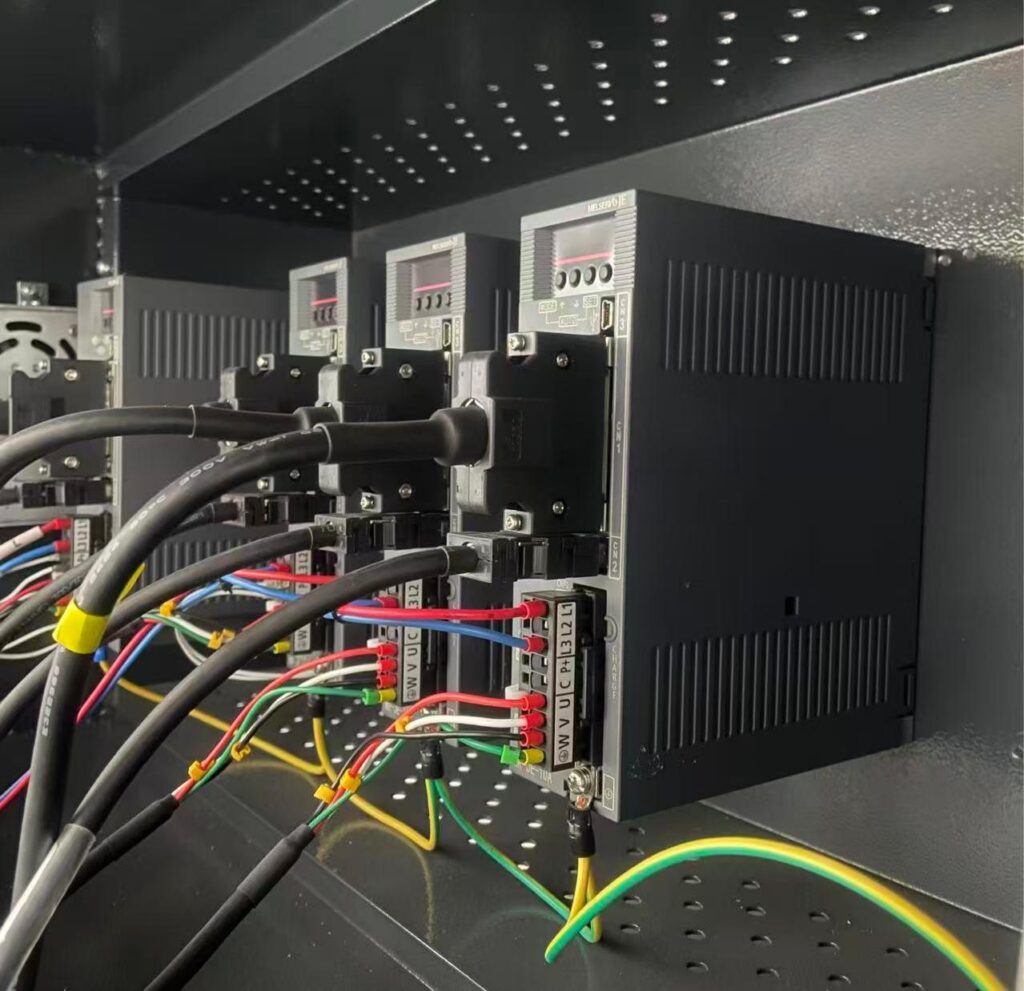

The YITAI GBD2516 upgraded this core drive system by equipping the machine with Japanese Mitsubishi servo motors and planetary reducers.
Compared to standard stepper systems, this high-performance servo setup offers distinct practical advantages for daily workshop operations:
- Stable Torque at High Speeds: The Mitsubishi servos deliver consistent torque, which prevents the machine from stalling or losing synchronization when slicing through thick corrugated or honeycomb boards.
- Faster Response Times: The servo system responds instantly to complex digital paths. This rapid acceleration and deceleration significantly speed up the cycle times for intricate structural designs, such as small gift boxes or complex display inserts.
- Operational Stability: Supported by planetary reducers, the motors distribute cutting power smoothly, reducing vibrations and ensuring clean, vertical edges along every cut.
3. The Foundation: Vacuum Honeycomb Table with Integrated Flatness Control

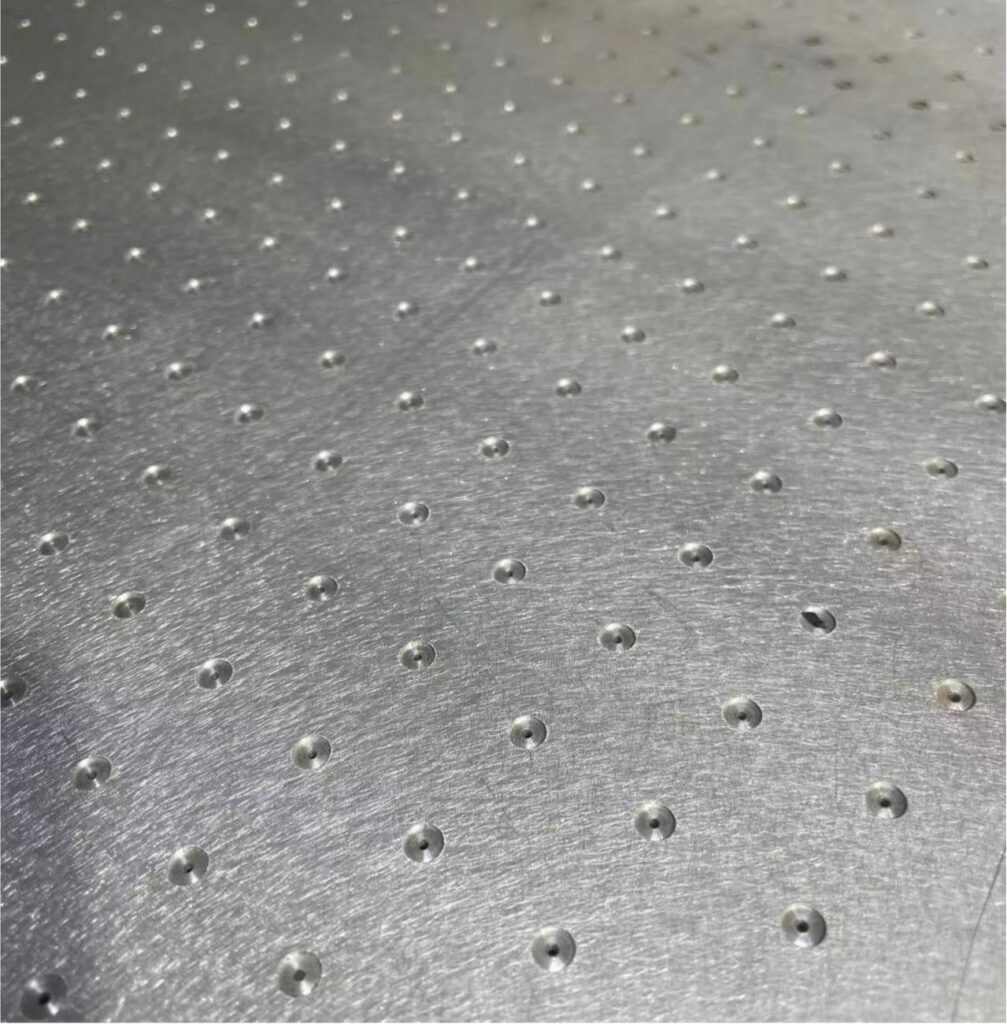

Even the best motor and guide rail setup cannot perform accurately if the material shifts or lifts during the cutting process. The GBD2516 addresses this with an aluminum honeycomb adsorption table built to a flatness tolerance of ±0.15 mm. Depending on your workshop’s power configuration, the table is supported by a high-power 7.5 kW to 12.5 kW vacuum pump and features an integrated 8-zone vacuum control system.
Instead of dispersing suction power across the entire bed, operators can restrict the vacuum draw only to the specific zones where the cardboard is placed. This concentration of negative pressure secures the material firmly against the honeycomb surface, preventing shifting during high-speed cutting. By maintaining a stable, flat cutting surface, the system helps ensure consistent depth control for sensitive processes like creasing, V-cutting, and half-cutting.
Heavy-Duty Build, Rapid ROI
Investing in a digital sample cutter is about securing long-term reliability. By combining HIWIN linear guides, Mitsubishi servo drives, and a fully welded heavy-duty frame, the YITAI GBD2516 is built to withstand continuous, multi-shift workshop use for decades.
It eliminates the weak points of budget-tier machinery, giving packaging manufacturers the speed, precision, and uptime needed to dominate the fast-growing HMLV market. YITAI has delivered high-performance cutting solutions to customers in over 100 countries. Backed by CE & ISO certifications, comprehensive online training, and up to a 24-month warranty, we ensure your production line never stops. Contact us to get more information and cutting solutions.
