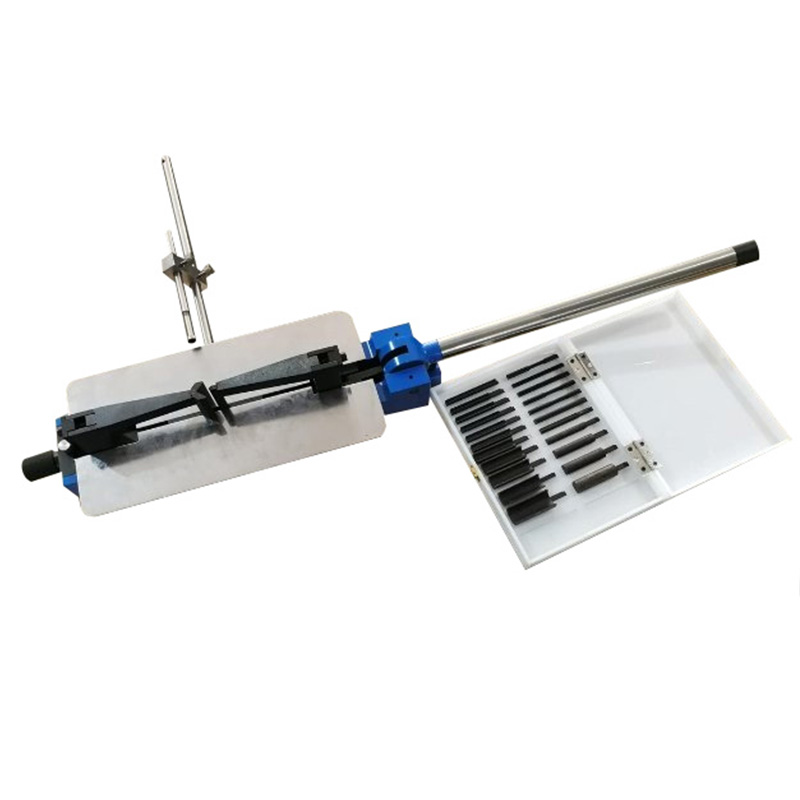

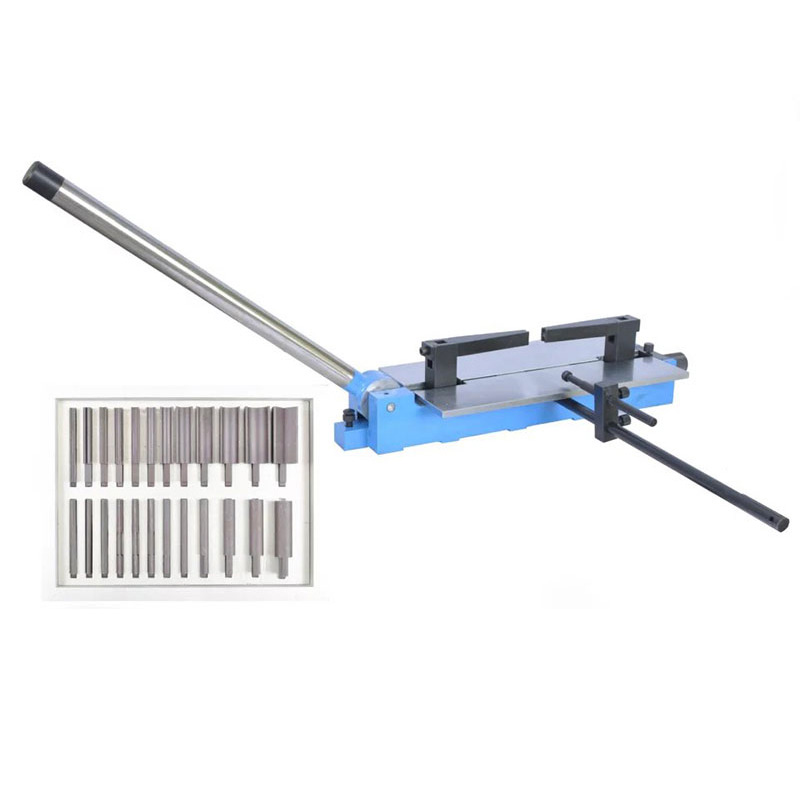

Our European Style Steel Rule Manual Bending Machine utilizes a 24 classic male and female mold system to form precise die profiles. Engineered with a reinforced structural design, this bender provides superior mold support and can easily bend thicker steel rules and handle complex, irregular shapes for modern packaging.
Specifications
| Model | TYB-07 |
| Supported Rule Thickness | 0.45-0.71-1.05-1.42mm(1pt 2pt 3pt 4pt) |
| Supported Rule Height | 8-100mm |
| Molds Quantity | 24 pcs |
| Flatness | 0.1mm |
| Machine Size | 1100x620x150mm |
| Net Weight | 31.9KG |
| Gross Weight | 41KG |
Key Features
CNC-Machined Alloy Body: The entire bender body and molds are crafted from high-strength alloy materials using a CNC machining center. Compared to conventional cast iron, it delivers superior resistance to deformation and remains completely rust-free.
Hardened Molds for Long Life: All bending tools undergo quenching and hardening treatments, improving wear resistance and durability by over 50% under heavy workshop use.
Modular Plug-and-Play Design: All molds are quick to replace. The universal bender base can accommodate different mold heights (such as 80mm, 100mm, etc.) to fit various blade specifications.
Ergonomic Lever Handle: Features an optimized lever-style handle design that makes continuous manual bending smooth and effortless.
Precise Repeatable Accuracy: Equipped with a unique adjuster and an adjustable screw mechanism. Operators can easily lock in the precise ultimate bending position to guarantee complete consistency across every batch.
Versatile Applications: Fully compatible with different thicknesses and heights of steel cutting rules, creases, and scoring lines. It easily creates complex contours including arcs, right angles, sharp angles, and wavy shapes for irregular packaging dies.
Material Compatibility: High-carbon steel cutting rules, creasing rules, and rotary/flatbed die blades.
Bending Shapes: Arcs, waves, sharp angles, right angles, and custom geometric contours.
Ideal For
- Flat die makers
- Packaging & printing factories
- Die board assembly workshops
- Users seeking a cost-effective steel rule die board manual bending machine
