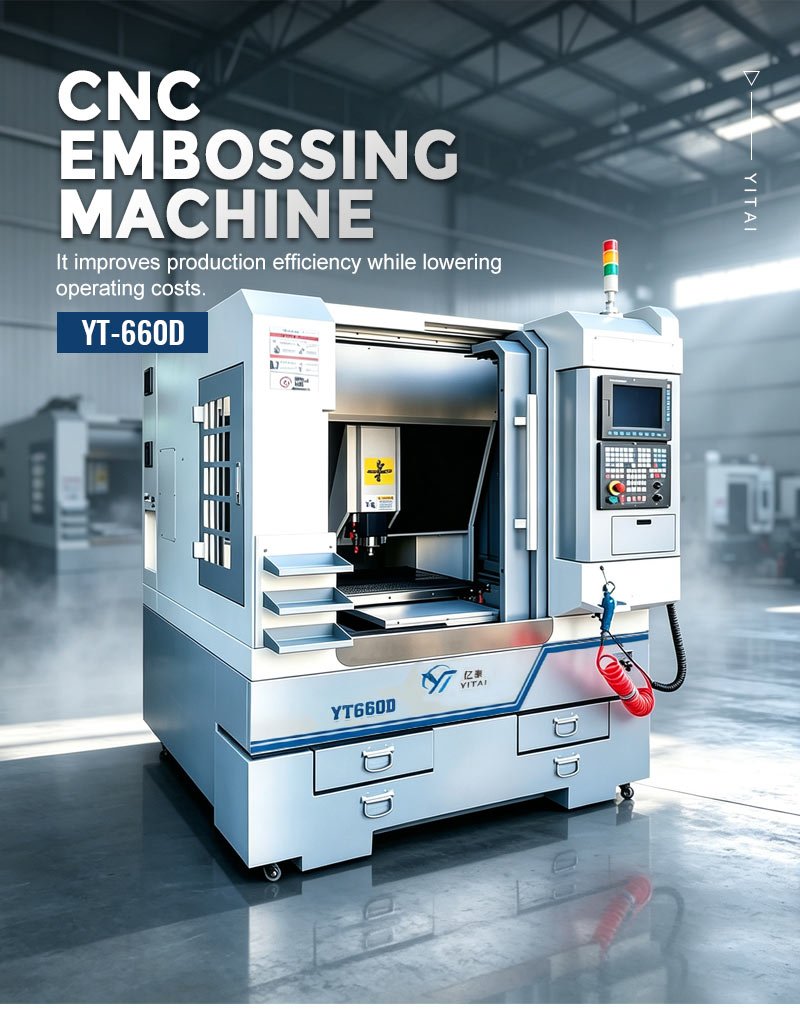

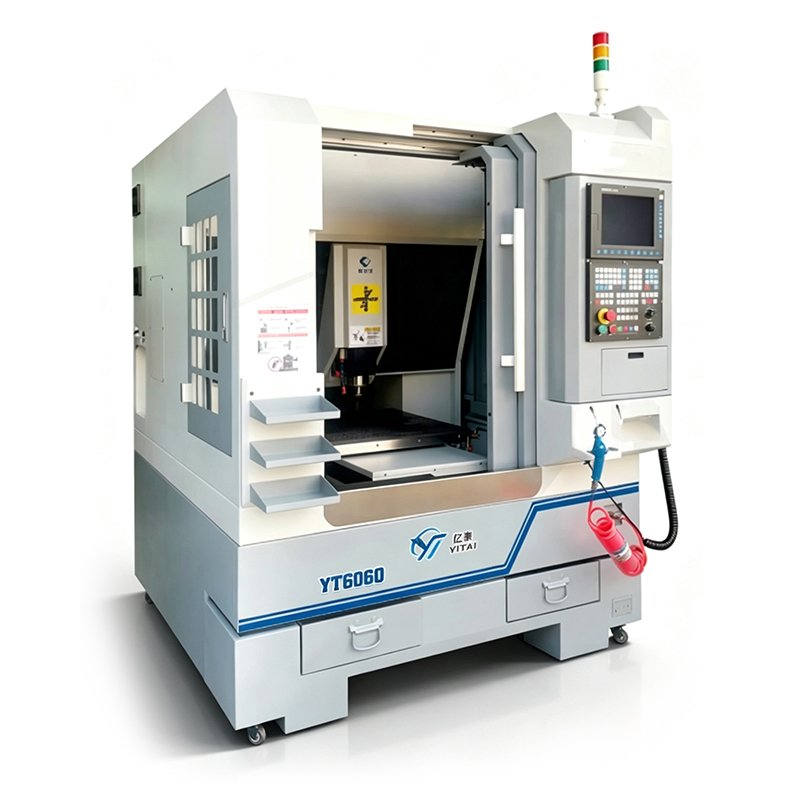

The YT-660D CNC Engraving Machine is purpose-built for manufacturing flat hot stamping plates, embossed dies, and debossed (textured) dies in copper, aluminum, and magnesium. It’s the machine die-making factories — along with printing and packaging companies, hot stamping plate manufacturers, traditional etching plate makers, and hot stamping processors — turn to when standard engraving equipment can’t deliver the fine detail or long-term precision their work demands.
What sets the YT-660D apart is a core assembly process most manufacturers skip: hand-scraping (a traditional fitting technique applied to the machine base and guideways) carried out by trained technicians. This hand-fitting is what keeps the machine holding micron-level accuracy well beyond a typical production lifespan. Every unit also undergoes a 72-hour full inspection before shipment, and finished hot stamping plates can achieve line widths as fine as 0.022mm.
Features

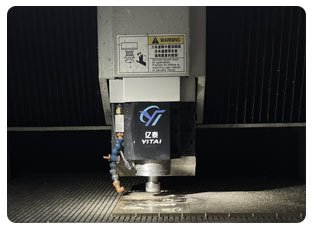

Imported Servo System
Equipped with TAIWAN servo motors, the unit runs at double the speed of stepper motors.

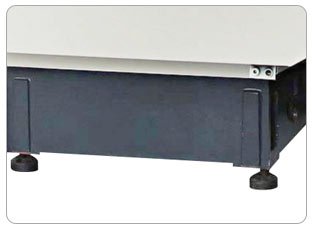

Thickened Base
The full cast‑iron machine base guarantees stable performance and high machining accuracy.

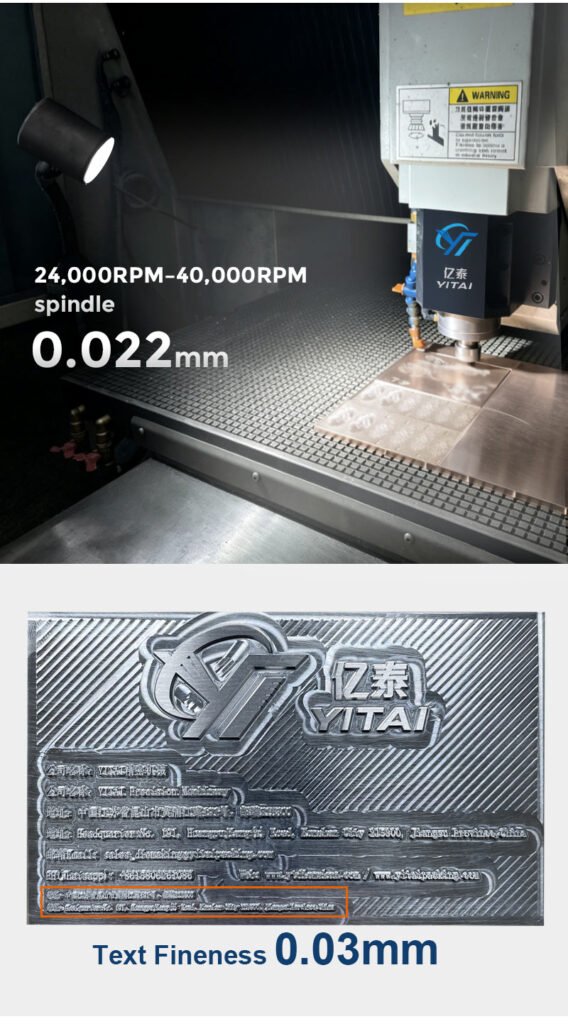

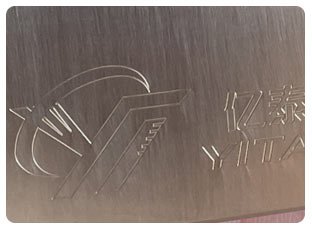

Machining Accuracy
Min milling line width 0.029mm
Processing Technology
Suitable for processing materials including hot‑stamping dies, electronic‑metallurgy aluminum plates, industrial‑automation aluminum plates, synthetic stone, glass fiber, bakelite and eyewear sheets.

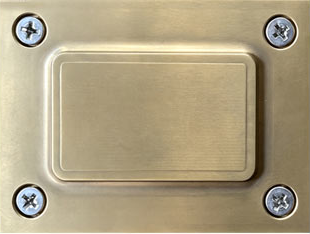

Embossing

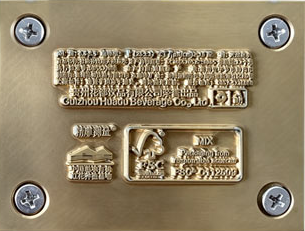

Flat Engraving with Fine Text

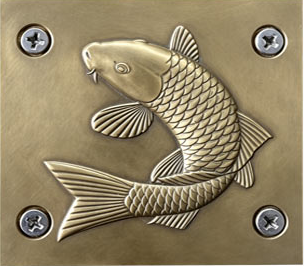

Raised Die

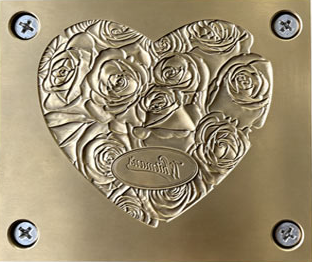

Debossing Die
Sculptured Debossing Die

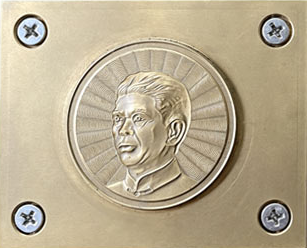

Flat Engraved Emboss
& Deboss Die
Parameters
| Parameters | Specification |
| X/Y/Z-Axis Working Travel | 600x600x110mm |
| Worktable Size | 620x620mm |
| X/Y/Z-Axis Positioning Accuracy | ±0.005mm |
| X/Y/Z-Axis Repeat Positioning Accuracy | ±0.008mm |
| Worktable Flatness | ±0.025/300mm |
| XY-Axis Perpendicularity | 0.025/300mm |
| Z-Axis Clearance Height | 150~300mm |
| Drive System | AC Servo |
| Spindle Power | 2.2kW |
| Spindle Speed | 24000rpm |
| X/Y/Z-Axis Travel Speed | 15x15x10m/min |
| Max Cutting Feed Speed | 6m/min |
| Max Worktable Load | 200kg |
| Working Voltage | Single-phase 220V / 50Hz ±10% |
| Machine Weight | 2000kg |
| Overall Dimensions | 1400x1800x2000mm |
What is the YT-660D CNC Engraving Machine used for?
It manufactures flat hot stamping plates, embossed dies, and debossed (textured) dies, engraving copper, aluminum, and magnesium plates with micron-level precision.
Who typically uses this machine?
Die-making factories are its primary users, alongside printing and packaging companies, hot stamping plate manufacturers, traditional etching plate makers, and hot stamping processors.
How fine a line can the YT-660D engrave?
Finished hot stamping plates can achieve line widths as fine as 0.022mm.
What makes the YT-660D different from other CNC engraving machines?
Its long-term precision relies on a hand-scraping assembly process applied to the machine base and guideways — a traditional fitting technique, performed by trained technicians, that keeps the machine accurate well beyond normal service life. Every unit also undergoes a 72-hour full inspection before shipment.
Has this machine been used by overseas die-making factories?
Yes — the YT-660D is already running in die-making factories outside China, producing flat stamping, embossed, and debossed plates.
