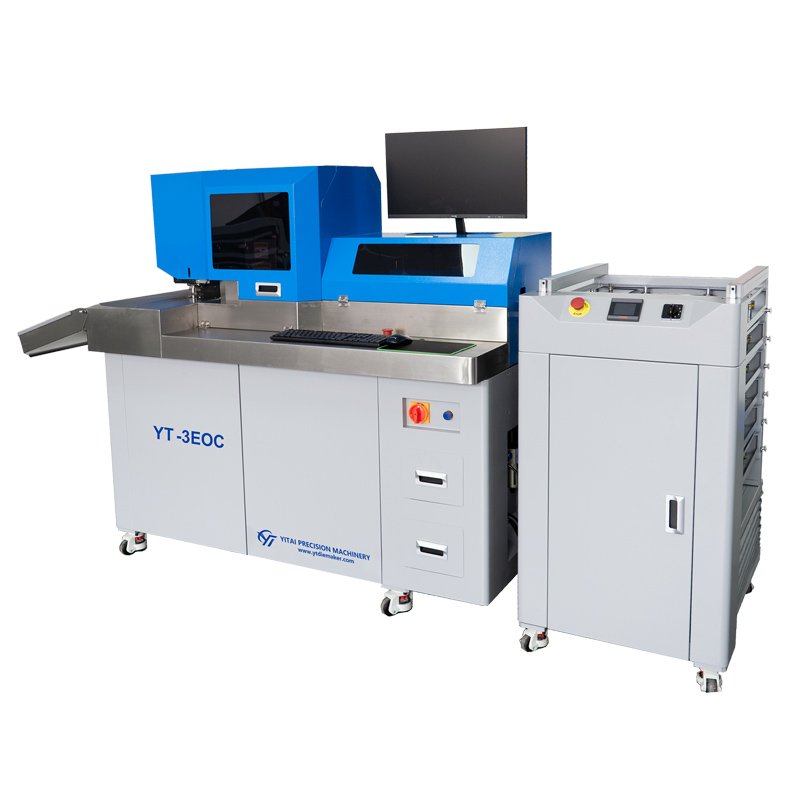

The YITAI YT-3EOC is an automatic steel rule bending machine built for precise, consistent bends. Its synchronous upper-and-lower gear drive is designed for accurate bending, and it handles steel rule from 0.45 to 1.07 mm thick and 8 to 32 mm high. Choose the configuration that fits your shop: 3 or 6 sets of punching and cutting dies, and 1 or 3 groups of slotting and dotting.
Features

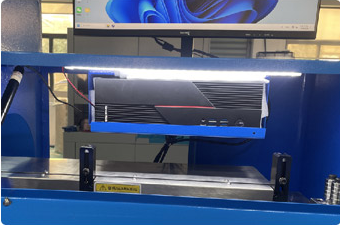

Relocated Control Host
The control computer has been repositioned to keep debris out of the host unit.

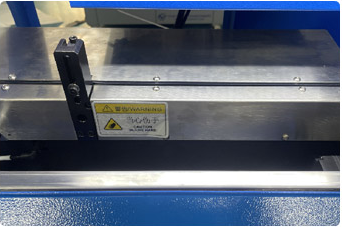

Lead Screw Dust Cover
Keeps debris out of the lead screw and extends its service life.

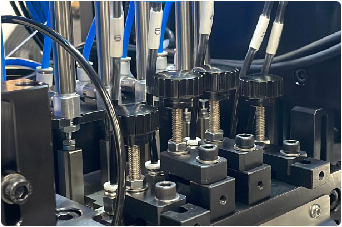

Selectable 3 to 6-Set Punching & Cutting Dies
Choose 3 to 6 sets of punching and cutting dies to match your production needs.

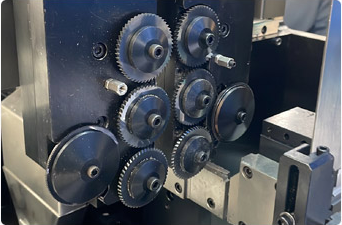

Optimized Slotting & Dotting
Slotting and dotting are improved, with 1 to 3 groups freely combinable.

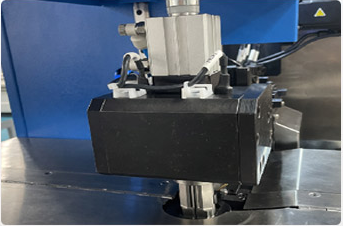

Integrated Bend-and-Shear Function
Bending and shearing are now combined in the synchronous upper-and-lower gear drive mode.

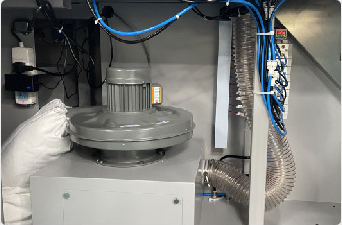

Vacuum Cleaner Option
Collects the grinding dust produced when sharpening the rule.
What's New in the YT-3EOC
- bend-and-shear in synchronous gear drive mode,
- a more 1 to 3 groups flexible slotting and dotting arrangement,
- 3 to 6-set punching and cutting die selection,
- a dust cover on the lead screw and a repositioned control host for longer, cleaner running.
Specifications
| Parameter | Specification |
| Steel Rule Thickness Range | 0.45–1.07 mm |
| Steel Rule Height Range | 8–32 mm |
| Operating System | Windows 11 |
| Supported File Formats | DXF, DWG, AI, CF2 |
| Compressed Air Requirement | 1 CFM at 6 bar |
| Power Supply | Single-phase, 220 V, 16 A, 3 kW, 50/60 Hz |
| Machine Dimensions (L × W × H) | 1750 × 800 × 1600 mm |
| Machine Weight | 480 kg |
| Rule Elevator Dimensions (L × W × H) | 700 × 900 × 1200 mm |
| Rule Elevator Weight | 200 kg |
What steel rule can it handle?
Rule from 0.45 to 1.07 mm thick and from 8 to 32 mm high.
What do I need to install it?
Single-phase 220 V, 50/60 Hz power, 6 bar compressed air and space for the machine and the rule elevator.
