The All-in-One Budget Bending Solution | 2pt / 3pt / 4pt Steel Rule Processing

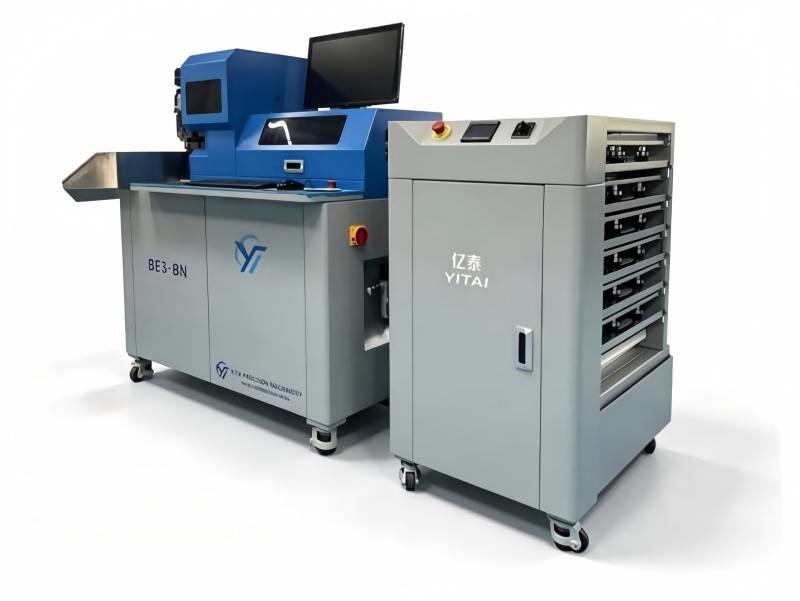

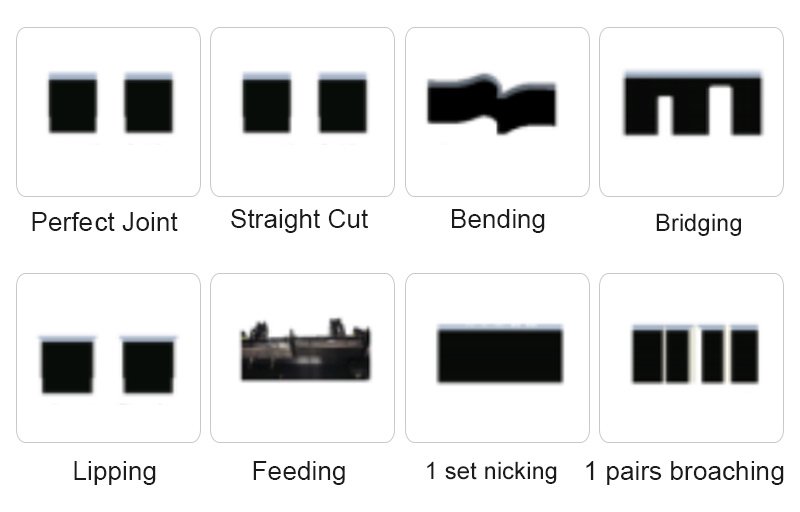

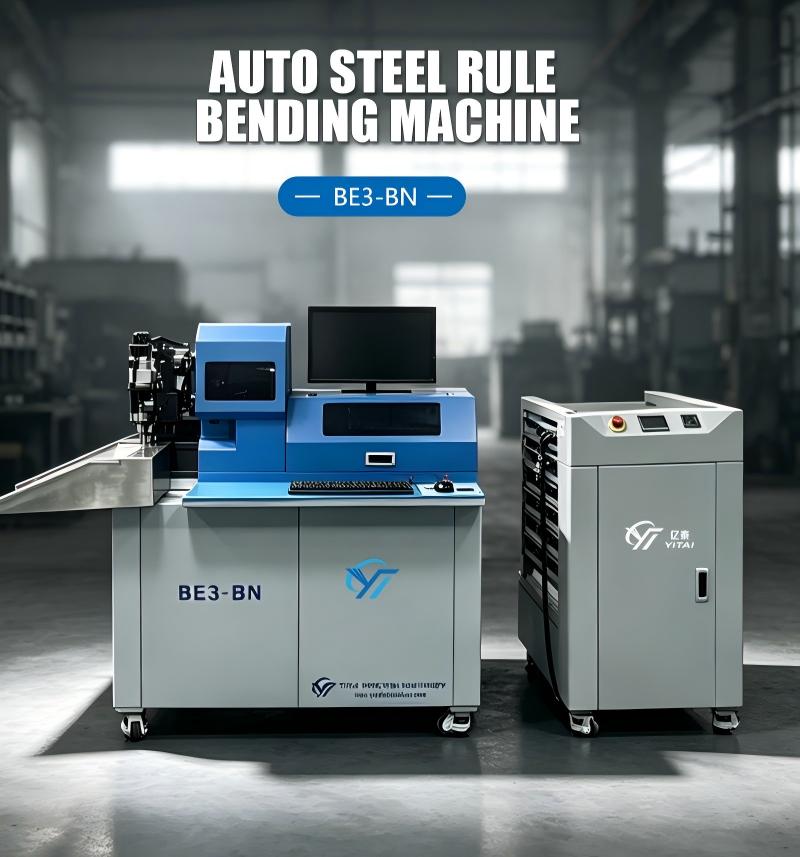

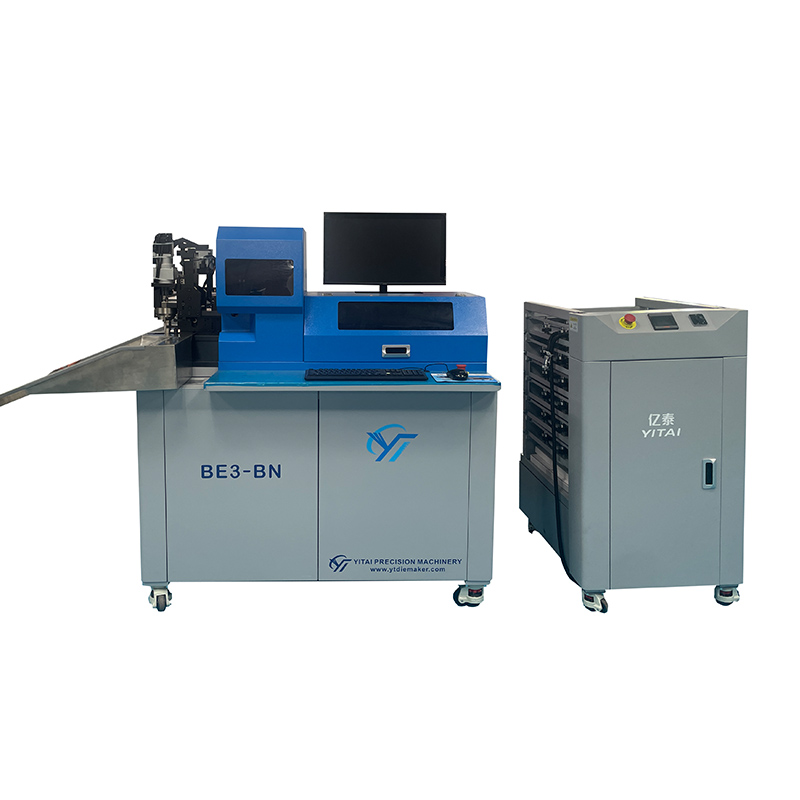

The YITAI BE3-BN is a versatile economic bender designed to handle extended die-making processes within a budget-friendly platform. Built as an upgraded version of our standard BE3, this model introduces essential nicking and broaching functions to its core package of bending, straight cutting, miter-lipping, and bridging. Unlike the single-level setup on the standard BE3, the BE3-BN features a 6-level automatic rule elevator, allowing you to handle basic multi-process jobs in one compact workstation without a premium investment.
DUAL-SCREW FEEDING
Integrated bending & cutting function
Fast and precise rule feeding, accelerates bending speed and reduces costs
EQUIPMENT ADVANTAGES
Sleeve Bending
- High bending forming accuracy, uniform and stable radius.
- Faster processing speed and high production efficiency.
- Protects the rule; prevents scratching, deformation, and edge chipping.
- Compact structure, perfectly adaptive to complex shapes with multi-angles.

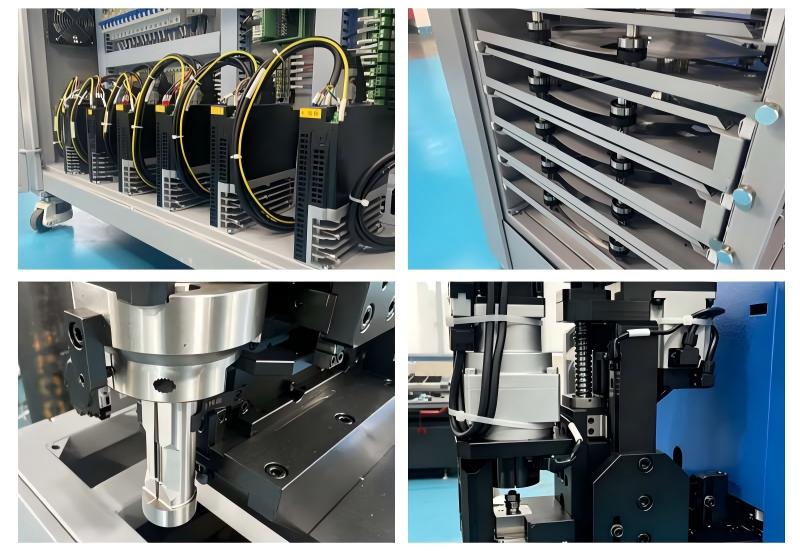

Dual-Screw
- Alternating cyclical feeding with zero return-trip delay, drastically boosting production capacity.
- Dual-sided synchronous screw drive ensures balanced feeding force without deviation or rule twisting.
- Higher feeding positioning accuracy with minimal dimensional error.
- Slip-free clamping protects the blade edge; ideal for various thin and soft rules.
- High structural rigidity and minimal vibration, built for long-term batch durability.
Software
- Self-developed software with automatic bridge depth adjustment.
Tungsten Steel
Crafted from heavy-duty tungsten steel for durability and excellent verticality (vs competitors’ trapezoidal shapes). Width tolerance within +-0.05mm (vs competitors’ tolerance of +-0.1mm).
High Precision
Gear-driven nicking (broaching) system utilizing only a single belt to drive the motor, ensuring stable precision and easy disassembly.
Standard equipped with 6-level auto rule elevator
Hiqh cost-effectiveness / Budget-friendly price
TECHNICAL PARAMETER
|
Specification |
Details |
|
Rule Thickness |
|
|
Rule Height |
8–23.8 mm |
|
Bridge Width |
>3 mm (customized available) |
|
Bridge Height |
10–20 mm |
|
Air Supply |
1 CFM at 6 Bar |
|
Power Supply |
Single Phases220V,20A3KW,50/60Hz |
|
Machine Weight |
370 kg |
|
Machine Size |
2800×800×1500mm(L×W×H) |
|
Packaging |
Wooden case |
WOODEN CASE PACKAGING
Packaging Details
Export standard packaging, with equipment packed in wooden boxes, ensuring stability during packaging and transportation
Our Services

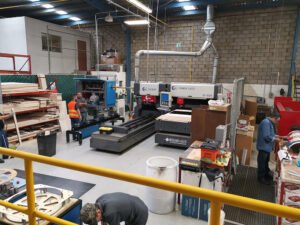

- English-speaking engineers for installation & training
- One-stop die making supply: machines + tools + consumables
- English software + manuals + training videos
- Fast service & low maintenance cost
- 1-year warranty + lifetime engineering support
