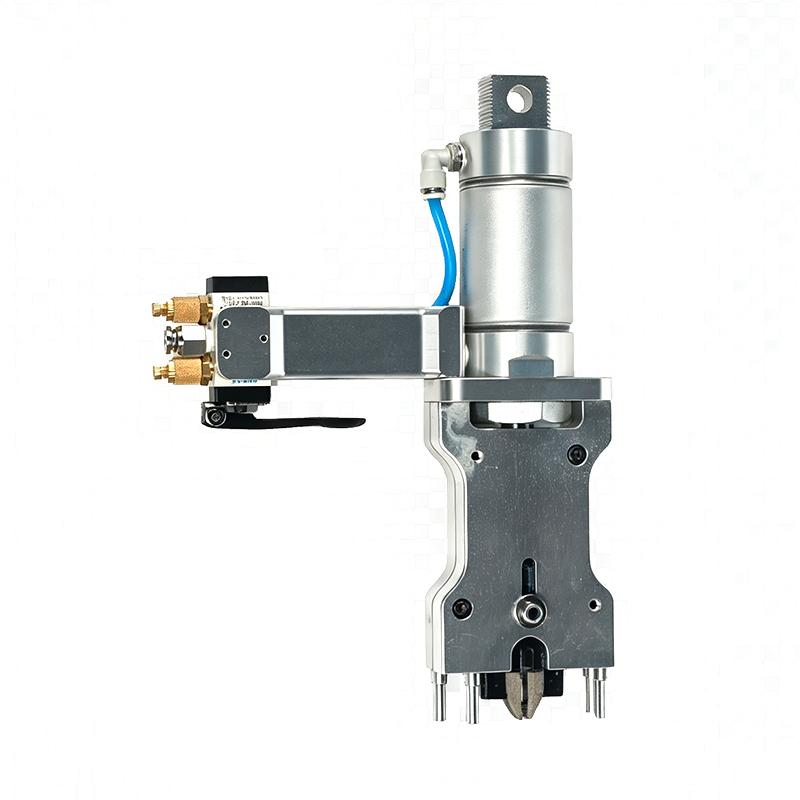

Upgraded from traditional manual puller, the YITAI Pneumatic Steel Rule Puller uses industrial-grade compressed air to extract steel rules in seconds. Designed specifically for die-making and die-repair workshops, this heavy-duty tool removes stubborn cutting and creasing rules with zero fatigue, zero operator injuries, and zero die-board damage.
Key Features
100% Vertical Lift (Zero Board or Rule Damage)
Manual prying uses lateral force that cracks expensive plywood die boards and bends steel rules. The pneumatic puller applies pure, uniform vertical lift—ensuring blades slide out cleanly so the die board can be reused safely.
50% Faster Job Turnarounds (Double Your Efficiency)
Removing deeply embedded 3Pt or 4Pt steel rules manually takes up to 10 minutes per board. With instant pneumatic boost, operators complete the same extraction in under 5 minutes with zero physical fatigue.
Driven by Authentic AIRTAC Pneumatics
Built with a genuine AIRTAC MBL50 double-acting cylinder (50 mm bore) and AIRTAC M5C110-06 handle valve. It delivers over 110 kg of instant vertical pulling force at standard workshop pressure (0.5 – 0.8 MPa).
One-Touch Trigger for Operator Safety
Eliminates dangerous slipping and direct contact with sharp rule edges. Operators simply position the clamp over the leverage point and press the trigger for a smooth, single-handed extraction.
Streamlined Design & Low Maintenance
Features a heavy-duty mechanical structure with minimal wearing parts. Standard air fittings and hardened clamping jaws are easy to inspect and quick to replace, keeping downtime to a minimum.
Technical Specifications
| Parameter | Specification |
| Product Type | Heavy-Duty Pneumatic Steel Rule Puller |

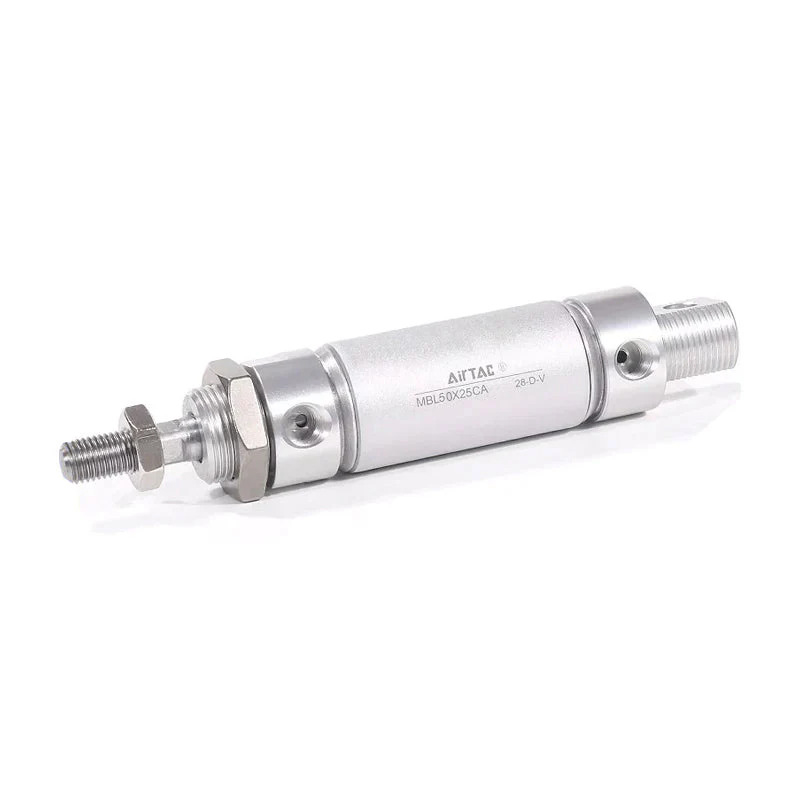

| Pneumatic Cylinder | Authentic AIRTAC MBL Series Double-Acting Cylinder (50 mm Bore) |

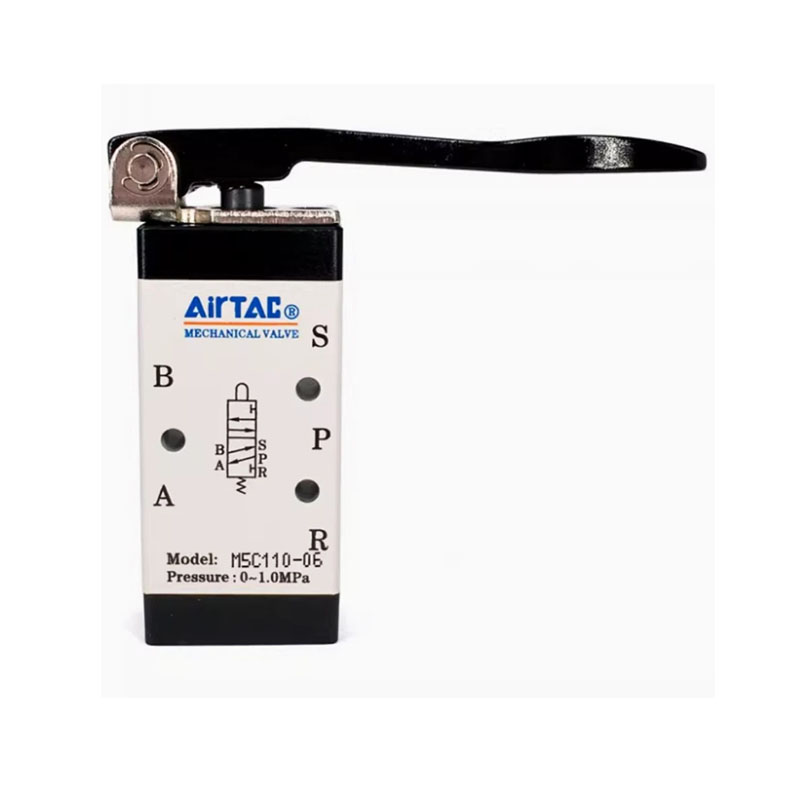

| Control Valve | Authentic AIRTAC M5C110-06 Handle-Type Mechanical Valve |
| Vertical Lift Stroke | 25 mm |
| Max. Pulling Force | Approx. 110 kg (at 0.6 MPa / 6 Bar) |
| Applicable Rule Thickness | 0.53 – 1.42 mm (1.5 Pt – 4 Pt) |
| Applicable Rule Height | 22.80 – 30.00 mm (Standard Flatbed Rules) |
| Working Air Pressure | 0.5 – 0.8 MPa (5 – 8 Bar / 70 – 115 PSI) |
| Air Inlet Port | G1/8″ Thread (Includes 1/4″ Quick Fitting Adaptor) |
| Operation Mode | One-Touch Air Control |
Upgrade Your Puller with Yitai
Stop wasting manual effort on stubborn steel rules. Contact the YITAI sales team today to get current pricing, shipping dimensions, and technical support for your factory setup.
