When sending a packaging prototype to an OEM client, the first thing they evaluate is not just the structural design—it is the finish quality.
If the cut edges of your corrugated board, heavy gray board, or honeycomb sheets are rough, frayed, or showing split paper layers, it creates immediate doubt. Clients naturally assume that if your physical prototypes have burrs and crushed flutes, your bulk production quality will be inconsistent.
Most packaging manufacturers struggle with rough sample edges. The root cause comes down to the cutting method: traditional drag knives vs. high-frequency oscillating tools.
The Root Cause: Drag Knives vs. High-Frequency Oscillating Knives
- Drag Knives (Pull Cutting): A static blade is pulled through the material. On thick C-flute corrugated board, dense gray board, or honeycomb panels, the blade drags and tears the paper fibers instead of shearing them. This results in fuzzy edges, delamination, and crushed flutes.
- High-Frequency Oscillating Knives (Shearing): The blade moves vertically at high frequency, acting like a surgical saw. It shears cleanly through tough fibers without dragging or compressing the material, leaving a smooth, factory-finished edge profile.
Multi-Tool Versatility: Beyond Just Clean Cutting

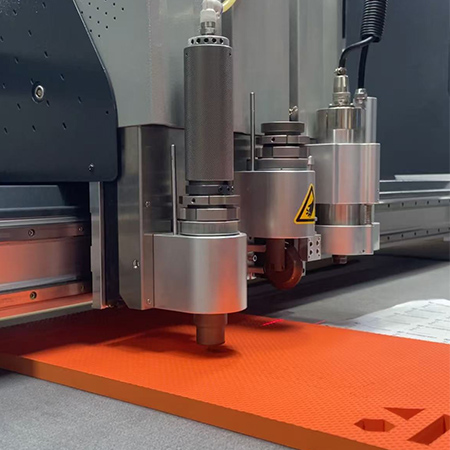

A clean cut is only the first step. The GBD2516 Corrugated Cardboard Cutting Machine integrates a multi-tool system within a single tool box, allowing structural designers to perform complex processes in a single job file without changing machines:
- Oscillating Cutting: For clean, 0-burr edges on corrugated and heavy-duty board.
- Creasing Wheel: Clean, crisp fold lines on E/B/C flute board without tearing the liner paper.
- Half Cutting & Dotted Line Cutting: For easy-fold perforations and tear-open box designs.
- Slotting & V-Cutting: Precise 0°–45° bevel cuts for rigid gray board gift boxes and honeycomb display stands.
Engineering Power: Designed for Industrial Precision
Eliminating burrs and material shifting requires extreme machine rigidity and high-torque motion control. The GBD2516 is engineered with premium hardware to ensure smooth cuts on materials up to 100 mm thick:
- HIWIN Gear Rack Transmission: Replacing traditional belt drives, the HIWIN rack-and-pinion drive provides higher load capacity, zero belt stretch, and a positioning accuracy of ±0.01 mm.
- Mitsubishi Servo Motors & Planetary Reducers: Japanese Mitsubishi servo drives deliver higher torque and continuous cutting stability at speeds up to 1400 mm/s.
- Vacuum Honeycomb Table: High-power vacuum suction firmly secures warped sheets or light cardboard, preventing shifting or lift-up during high-speed cutting.
- Infrared Safety Protection: Smart infrared sensors automatically stop operation if an operator enters the cutting zone, ensuring safe factory operation.
Material Compatibility & Application Scope
Whether you need a corrugated box sample cutter or a small-batch production unit, the GBD2516 handles a broad range of packaging substrates:
| Material Type | Application Area |
| Corrugated & Honeycomb Board | Industrial cartons, POP display stands, and corrugated furniture |
| Gray Board / Chipboard | Luxury rigid gift boxes, book covers, and high-end packaging |
| Printed Cardboard & Hollow Board | Color boxes, custom plastic packaging, and signage |
| Composite Paper & EVA Foam | Protective inner packaging inserts and custom cushioning |
The ROI: Why Upgrade Your Sample Department?
- Eliminate Tooling Costs (No Die Needed): Cut directly from DXF or PLT files. Test dozens of structural variations in minutes without waiting or paying for laser die boards.
- Zero Manual Post-Processing: Save 15 to 30 minutes per sample by eliminating manual edge trimming and sanding.
- Higher Contract Win Rates: Presenting clean, burr-free samples to your clients proves your factory’s attention to quality, speeding up sample approval and closing production orders faster.
Frequently Asked Questions (FAQ)
Q: Can this digital sample cutter handle small-batch production?
A: Yes! Equipped with an auto-feeding table, the GBD2516 seamlessly transitions from single-piece prototyping to short-run production without the lead time or setup cost of physical die cutters.
Q: How does the machine handle different board thicknesses?
A: The system supports up to 100 mm cutting depth, automatically adjusting tool height and pressure settings for materials ranging from thin 2PT cardstock to heavy-duty multi-wall honeycomb board.
Upgrade Your Prototype Finish Quality Today
Stop letting rough edges undermine your structural design expertise.
Want to test your materials on the GBD2516? Contact our team today to request a FREE material cutting test or get a full machine quote!
