Your Roadmap to Efficient Rotary Die Production: A Guide to Choosing the Right Equipment
In the dynamic world of rotary die cutting, the quality and efficiency of your tooling start with your production process. Whether you are a small workshop just starting out or a large-scale industrial die maker, selecting the right equipment for each stage of rotary die manufacturing is critical.
This guide breaks down the essential machinery for rotary die production into three core processes, offering options for every scale and budget. Use it to build your ideal workflow.
1. Die Board Cutting: The Foundation of Your Rotary Die
The first step in creating a precise rotary die is accurately cutting the groove pattern into the cylindrical wooden die board. Your choice here will define your production speed, precision, and operating costs.

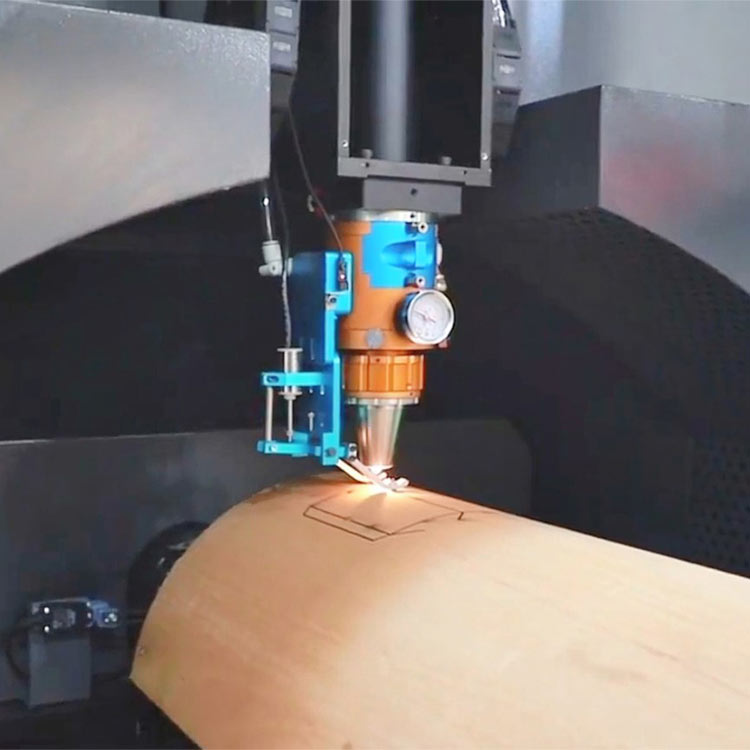

Rotary Die Board Laser Cutting
| Option | Technology | Best For | Key Advantages |
|---|---|---|---|
| Option 1: Co2 Rotary Laser Cutting System | Laser | High-volume, complex design shops | Speed & Complexity: Fastest cutting speed, ideal for intricate patterns with sharp corners. No tool wear. |
| Option 2: CNC Rotary Die Board Milling Machine | Mechanical Routing | Growing shops focused on cost-per-die & clean edges | Cost-Effective & Clean: No carbonization means stronger rule adhesion. Lower operating costs than laser (no gas, less power). Environmentally friendly with no fumes. |
| Option 3: Rotary Jig Saw Machine | Manual/Semi-Automatic | Entry-level shops, prototyping, or low-volume production | Lowest Entry Cost: Simple, reliable technology. Ideal for getting started or for secondary adjustments with a familiar manual feel. |
Our Recommendation:
- Start-ups & Low Volume: Begin with the Rotary Jig Saw Machine.
- Established Shops: If you prioritize low long-term costs and clean grooves, the CNC Rotary Milling Machine (like the YTR8) is an excellent, profit-smart choice.
- High-End & High-Speed: For maximum speed and the ability to cut the most complex geometries, the Co2 Rotary Laser Cutting System is the industry standard.
2. Steel Rule Bending: Forming the Cutting Edge
Once the board is cut, you need to bend the steel rules precisely to fit the grooves. Accuracy at this stage ensures perfect die registration.
Rotary Die Rule Bending Machine
| Option | Technology | Best For | Key Advantages |
|---|---|---|---|
| Option 1: Automatic Rotary Rule Bending Machine | Automated CNC | High-volume production | Speed & Consistency: Program and bend complex shapes automatically, ensuring every rule is identical and reducing labor costs. |
| Option 2: 4-in-1 Rotary Rule Processing Machine | Multi-Function Automated | Versatile shops needing flexibility | All-in-One Efficiency: Combines bending, notching, cutting, and marking in one station. Ideal for shops that handle a wide variety of rule types and want to minimize work-in-progress. |

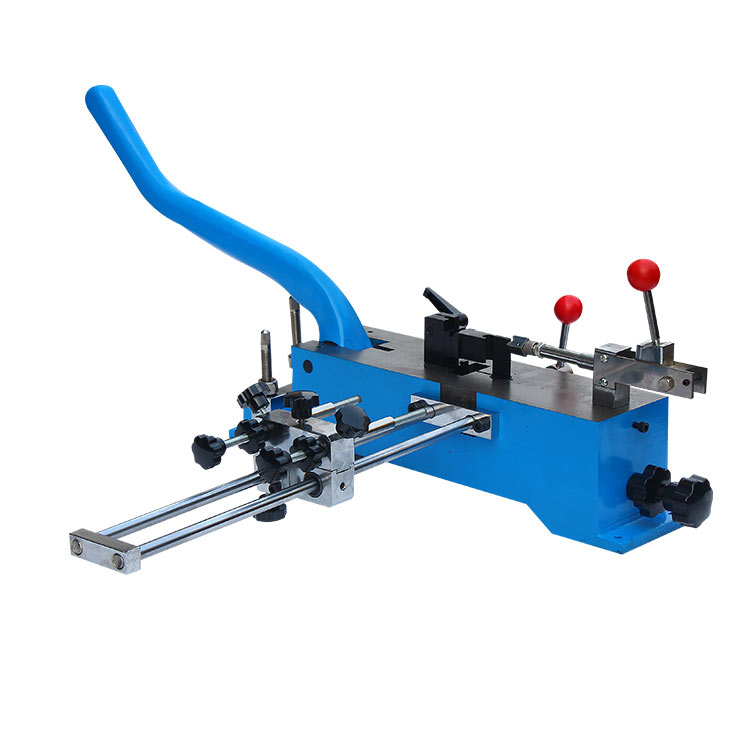

| Option 3: Manual Steel Rule Bender | Manual Tool | Prototyping, repairs, and low-volume work | Ultimate Control & Low Cost: The most affordable option. Perfect for one-off dies, quick adjustments, and situations where hands-on craftsmanship is required. |
Our Recommendation:
- Low Volume & Repair: A Manual Bender is an essential hand tool for every bench.
- Growing Business: The 4-in-1 Machine offers incredible versatility without breaking the bank.
- High Throughput: Step up to a dedicated Automatic Bender for maximum output and consistency.
3. Rubber Cutting: Preparing Ejection Material
Properly placed ejection rubber is crucial for cleanly releasing the cut material from the die. Cutting it accurately saves time and improves die performance.
| Option | Technology | Best For | Key Advantages |
|---|---|---|---|
| Option 1: Ejection Rubber Cutting Machine | Dedicated Die-Cutter | Fast, precise rubber preparation | Speed & Simplicity: Quickly punches or cuts rubber strips and pads to precise specifications, ready for immediate placement on the die. |
| Option 2: Water Jet Cutting Machine | High-Pressure Abrasive | Maximum precision & versatility | Cold Cutting Process: Cuts rubber, foams, and even hard materials (like Pertinax) without heat-affected zones. Provides a perfect, burr-free edge. Can also be used for other workshop tasks. |
Our Recommendation:
- Dedicated Die Shop: A dedicated Ejection Rubber Cutting Machine is a fast and focused tool for this specific task.
- High-Precision & Diverse Needs: If you also process materials like plastic or metal for other applications, the Water Jet Cutter offers unparalleled versatility and precision.
4. Essential Components for Rotary Die Making
Beyond the machinery, the quality of your raw materials and supporting hardware directly impacts your die’s performance and lifespan.
- Cylinder Drum: This is the precision steel base on which you mount your rotary die board. Look for high-precision tolerances (±0.05mm) and a durable chrome-plated finish. Options with band brakes (manual or electric) provide safe and controlled handling during die making. (Learn more about Cylinder Drums)
- Rotary Die Board: The foundation material. Your choice of high-quality birch or beech plywood is critical for holding the steel rules securely.
- Rotary Die Steel Rules: Available in common heights like 2PT, 3PT, and 4PT. The quality of the steel rule affects its bending consistency and cutting edge longevity.
- Die Making Ejection Rubber: The correct type, hardness, and placement of rubber are vital for preventing material jams and ensuring a clean cut.
Your Path to the Perfect Rotary Die Workflow
Building an efficient rotary die production line is about matching the technology to your business goals.
Start Small: Begin with a Jig Saw Machine, a Manual Bender, Rotary Die Boards & Steel Rules .

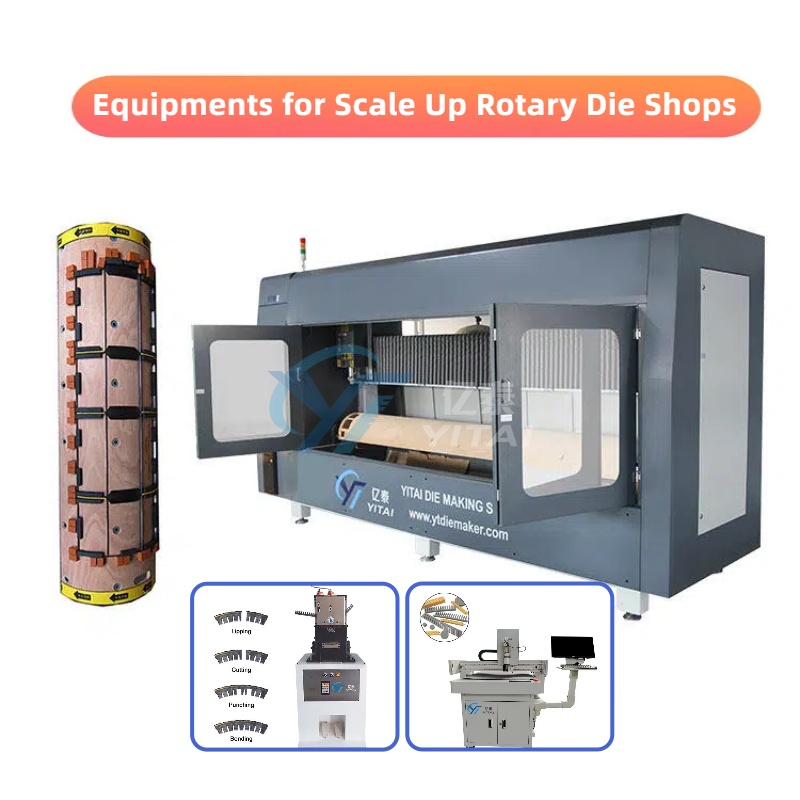

Scale Up: As volume grows, CNC Rotary Router, add a 4-in-1 Bender, Rubber Cutting Machine for lower per-die costs and an for speed.

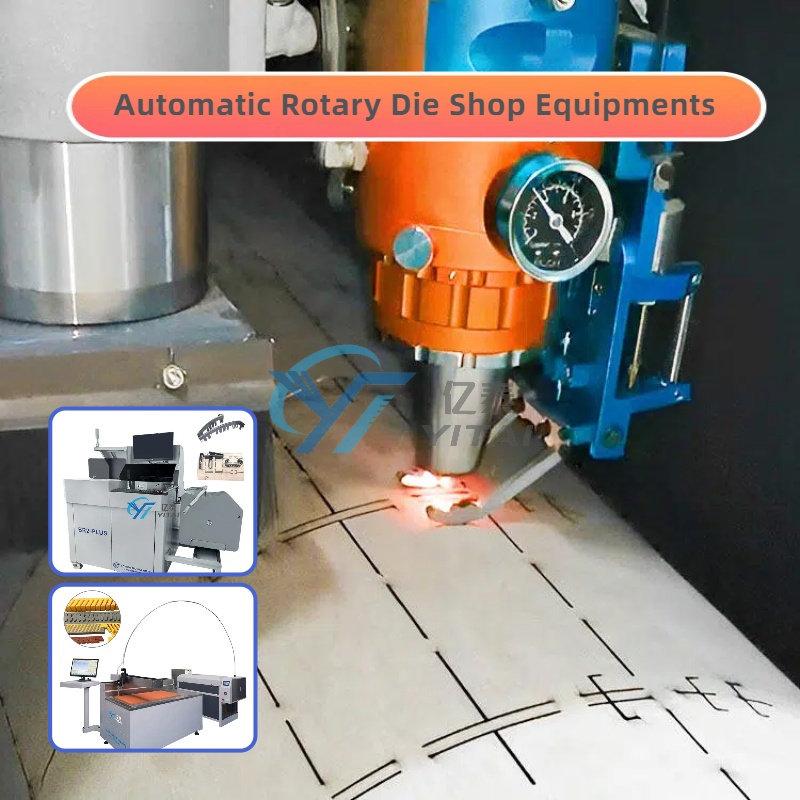

Maximize Output: For high-volume, complex work, integrate a Rotary Laser , Automatic Bender and Waterjet Rubber Cutter for maximum throughput and flexibility.
At YITAI, we provide complete, scalable solutions for every step of this process. From our precision cylinder drums and high-quality consumables to our advanced CNC routers and laser systems, we have the equipment and expertise to help you build the perfect workflow.
Contact our technical specialists today to discuss your production needs and find the ideal equipment configuration for your shop.
