Precision Tool for Die Rule Processing

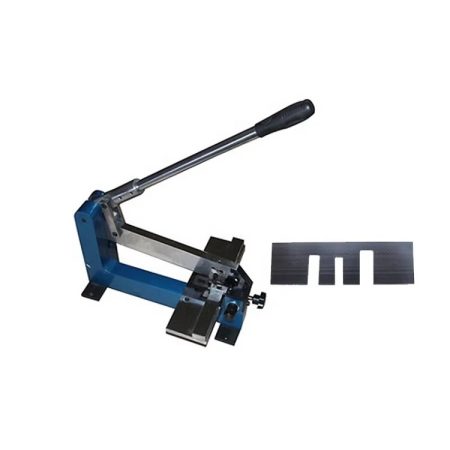

The YTP-06 Manual Punching Machine is a specialized tool engineered for creating precise bridge holes on pre-bent steel rules used in die cutting applications. Designed for seamless integration into manual die-making workflows, this unit pairs perfectly with any manual steel rule bender or manual steel rule bending machine to complete the shaping and punching process of flat and rotary cutting rules.

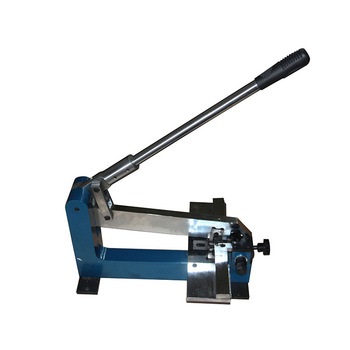

Die Blade Punching Machine

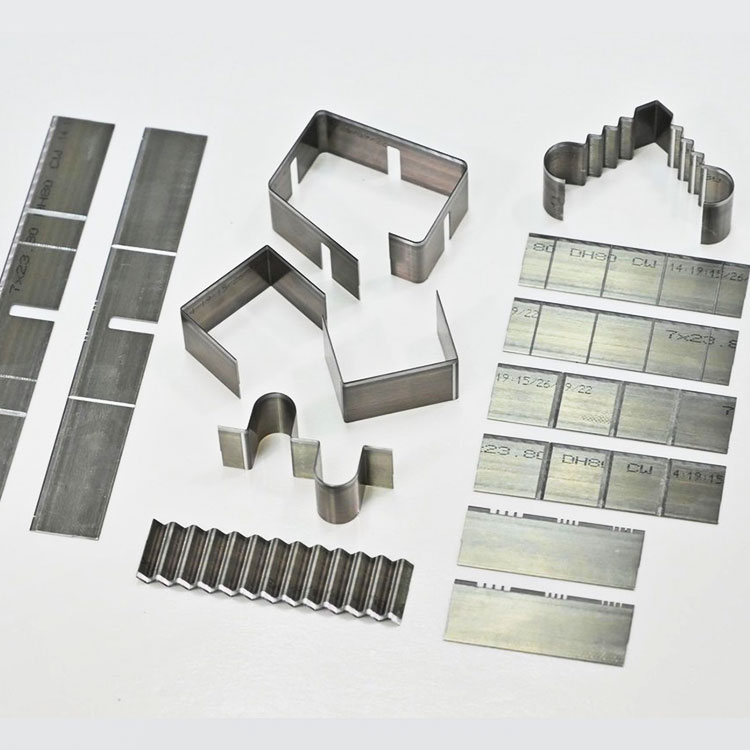

Die Cutting Blade
For die shops seeking a cost-efficient, durable, and accurate punching solution, the YTP-06 delivers outstanding performance with simple, stable mechanics and no power requirements.
Product Overview
This machine is designed specifically for use with steel rule punches, allowing operators to form clean and consistent bridge slots on steel rules after bending. Whether producing flat dies, rotary dies, corrugated dies, or folding carton dies, the YTP-06 provides exceptional control for manual rule processing.
It is an essential companion machine to rule benders—completing the last critical step before steel rules are installed onto the die board.
Key Features
✔ Designed for Bridge Punching on Steel Rules
Tailor-made for abnormal rule shapes and for punching bridge holes on rules previously formed by a manual steel rule bender.
✔ Manual, Stable, and Power-Free Operation
No electricity or air source required.
Ideal for workshops with flexible production demands or small-batch customization.
✔ High-Precision Punching Head
The punch assembly ensures:
Clean and accurate hole formation
Adjustable punch depth for different steel rule specifications
Consistent repeatability for professional die-making standards
✔ Durable Heavy-Duty Construction
The main body is manufactured from hardened steel, ensuring high stability and long service life even under continuous manual operation.
Technical Specifications
| Item | Specification |
| Model | YTP-06 |
| Operation Type | Manual / Hand-operated |
| Application | Steel rule punches (bridge/slot hole) |
| Compatible Rule Height | Up to 25 mm (customizable) |
| Punch Standard Size | 9 mm (customizable) |
| Punch Depth Range | 0–25 mm adjustable |
| Weight | 10–15 kg |
| Dimensions | Approx. 300 × 200 × 450 mm |
Compatible Manual Rule Processing Tools
The YTP-06 pairs perfectly with other manual die-making tools such as:
YTB-56B Manual Steel Rule Bending Machine — For bending rules up to 56 mm
YTC-56B Manual Rule Cutter — For precision cutting with clean edges
YTLC-40 Double-Lip Cutter — Straight and corner cuts in one tool
YTB-25 Manual Steel Rule Bender — 36 molds for complex rule shapes
YTC-25 Cutter — Straight/corner cutting for 32–50 mm rule heights
YTP-9 Steel Rule Punching Machine — For joints, corner punching, and special hole shapes
Together, these tools create a complete manual die-making production line.
Full Die-Making Solutions
YITAI offers a full supply chain including:
Flat & rotary die boards
Cutting rules, creasing rules, perforating rules
Manual and automatic rule benders
Steel rule punches & rule cutters
Anvil covers, doctor blades, ejection rubber, nick grinders
Sample making machines & full laser systems
Why Choose YITAI?
40+ years of die-making industry expertise
Exported to 40+ countries worldwide
Close proximity to Shanghai & Ningbo seaports for fast delivery
