High-Performance Flatbed & Rotary Die Board Laser Cutter
— CNC Flat Laser & Laser 2-in-1 System for Professional Die Makers
The YITAI Industrial Flatbed Laser Cutting Machine is engineered specifically for flat & rotary die board manufacturing, offering unmatched precision for packaging, printing, corrugated, and die-making factories.
With optional 2-in-1 CNC laser configurations, it integrates flatbed laser cutter + rotary cutter processing into one system—ideal for die makers needing both flat rotary cutter blades and flat die board production.
Available in 1000W / 1500W / 2000W CO₂ laser options, the machine delivers powerful and stable performance for continuous industrial production.
Rotary Laser Cutting
Versatile Cutting Capabilities for Die Makers & Packaging Plants
This CNC flat laser system is optimized for a wide range of die board and packaging materials:

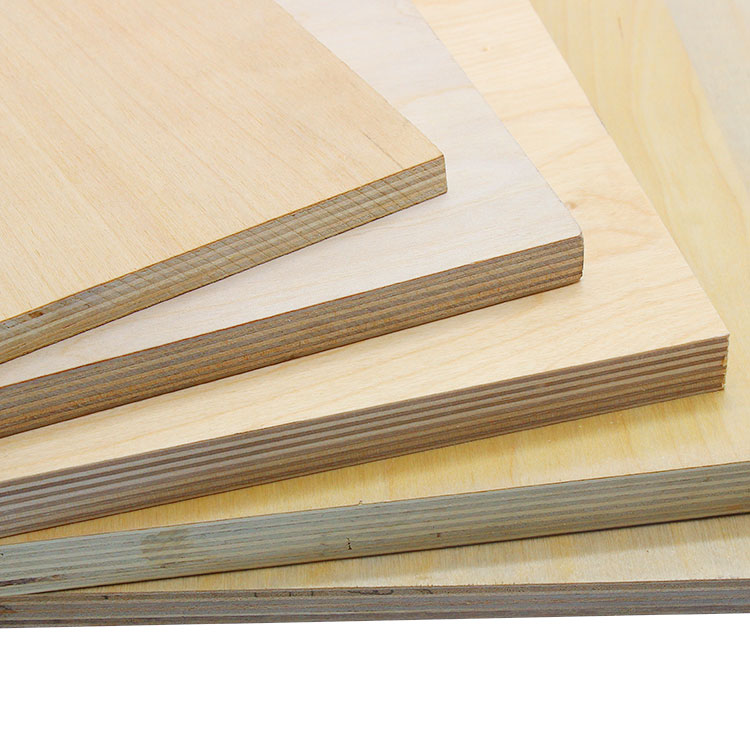

- Die-making plywood
- MDF
- PVC sheets
- Acrylic (up to 30mm)
- Thin metal sheets

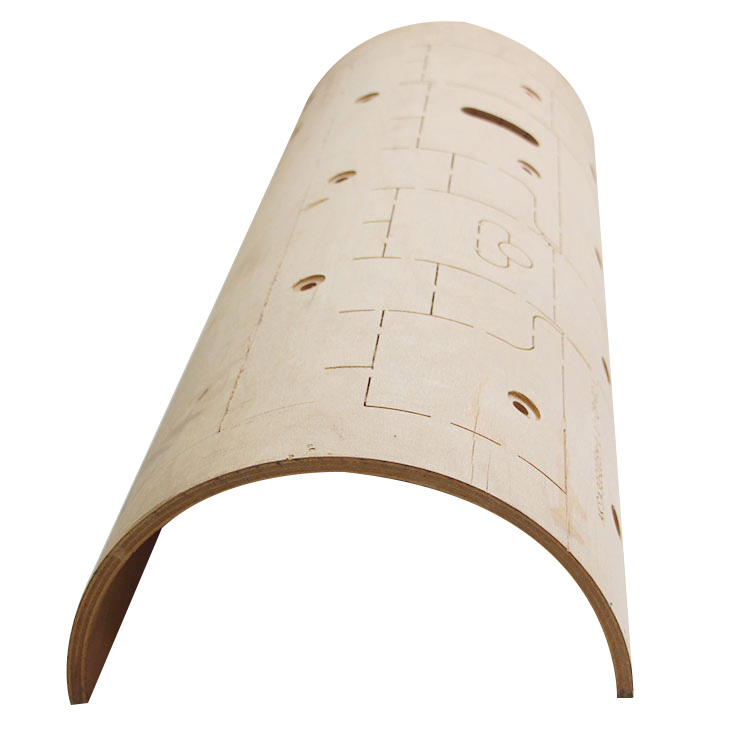

- Rotary die boards / shells

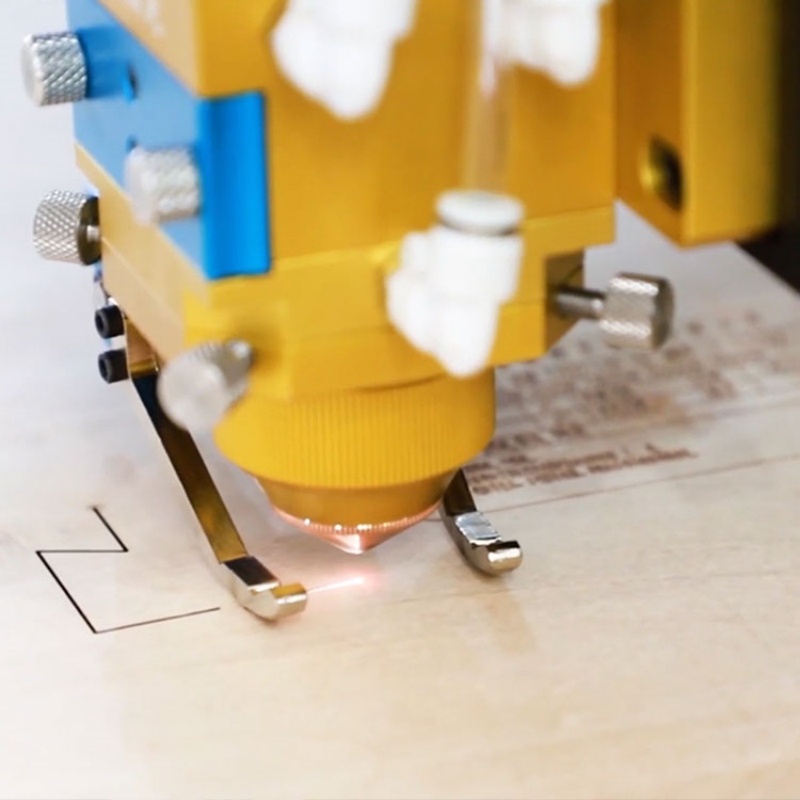

Flat Laser Cutting Machine
Its combo laser cutting machine configuration allows both flatbed cutting and rotary tube-like cutting, making it a practical choice when comparing laser tube cutting machine price, performance, and precision.
Widely used in:
- Steel rule die-making factories
- Packaging & printing companies
- Corrugated box manufacturers
- Advertising & signage cutting
Advanced Features — Engineered for High-Accuracy Die Making
As a trusted global Die Making Solution Provider, YITAI integrates advanced engineering into every flatbed laser cutter:
1. Compact Gantry Structure — Stable, Heavy-duty Cutting
Reduces vibration and ensures consistent accuracy during long-hour cutting.
2. PA CNC Control System
Germany PA controller integrates laser + motion + cutting path, perfect for flat & rotary die cutting patterns.
3. CAD/CAM Software for Auto Nesting
Minimizes waste and boosts output efficiency.
4. Fully Enclosed Dust-Free Cutting
Keeps the workshop clean and ensures 100% smoke extraction.
5. Long-Life Optical Path System
Positive-pressure design protects lenses for long-term industrial use.
6. Multi-Gas Compatibility
Supports He / N₂ / CO₂ for flexible cutting needs.
7. Heavy-duty Worktable
Sturdy stainless-steel surface supports up to 160kg.
8. Rotary Bed with Anti-Deformation Shaft
Solutions for long-time high-heat rotary cutting.
9. Optional Upgrades
- Fast laser marking
- Precision drilling
- Flat + rotary 2-in-1 CNC laser system
Machine Parameters — CNC Flat Laser / Combo Laser Cutting Machine
| Item | Specification |
|---|---|
| Model | YTX Series |
| Laser Power | 1000W / 1500W / 2000W / 2500W |
| Structure | Gantry — Flatbed Laser Cutting Machine |
| X Travel | 2500 mm |
| Y Travel | 1220 mm |
| Z Travel | 120 mm |
| Max Rotary Board Size | 170–800 × 3000 mm |
| Cutting Speed | Flat: 130–150 m/h |
| Reposition Accuracy | ≤0.02 mm |
| Control System | Germany PA CNC |
| Transmission | Taiwan ball screw + linear guides |
| Servo System | Japan high-precision servo motors |
| Laser Gas | He / N₂ / CO₂ (99.999%) |
| Cutting Thickness | 0.1–30 mm |
Consumption Data
| Total rated Power | Electricity consumption | consumption (Gas He) | Consumption (Gas N2) | Consumption (Gas co2) |
| 18KW | 18 degree/H | 130hours/bottle | 130hours/bottle | 1bottle/year |
Quality Assurance
YITAI lasers are tested with precision measurement tools.
Example: YT48-10N flat die board laser cutter achieves 0.02mm tolerance, verified by professional laser meters—ideal for high-precision die board manufacturing.
Why Choose YITAI — Your Flat & Rotary Die Cutting Partner
- English-speaking engineers for installation & training
- 24/7 technical support
- Full English software + training videos
- One-stop die making solutions (laser, bender, router, rules, boards)
- 1-year warranty + lifetime technical service
- Multiple power options (1000W / 1500W / 2000W / 2500W)
- Flatbed + Rotary 2-in-1 CNC laser system available
- Competitive tube laser for sale & combo laser configurations
Before Quotation, Please Tell Us:
- Which machine model do you need? (Flatbed / Rotary / 2-in-1 CNC)
- What materials will you cut? (Thickness, size, type)
- Are you a die maker, packaging factory, or distributor?
Contact Us for Full Product Information
YITAI provides flatbed laser cutters,rotary laser cuttingmachine， combo laser systems, tube laser cutting machines, and complete die-making equipment.
If you’re comparing laser tube cutting machine price or need a 2-in-1 CNC laser, our team will help you choose the right machine.
