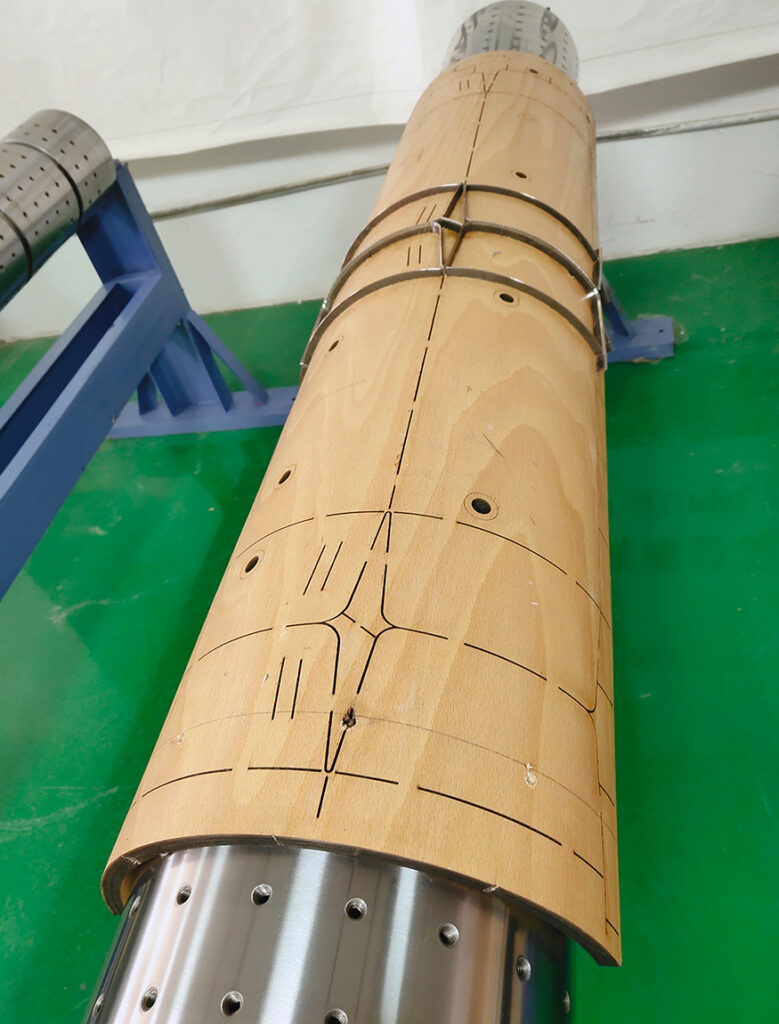

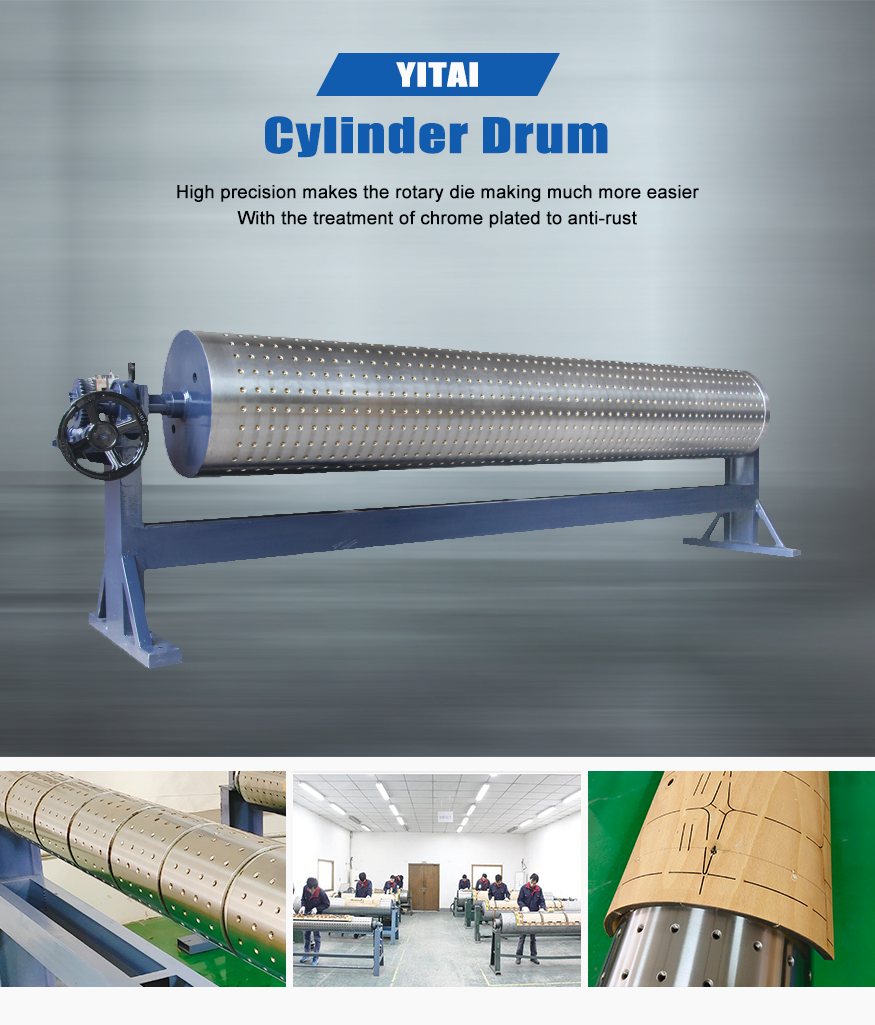

The Cylinder Drum is a precision component designed to firmly fix and support rotary die boards during the rotary die making process. With high dimensional accuracy and stable performance, it ensures precise positioning of die boards, significantly improving efficiency and accuracy in rotary die production.
This cylinder drum is widely used in rotary die cutting machine preparation, rotary die board mounting, and die-making workshops.
Product Specifications
- Diameter Range: 178 mm – 750 mm
- Length Range: 1800 mm – 5000 mm
- Material: Steel
- Surface Treatment: Chrome plated for anti-rust protection
- Operation: Hand-operated or electric rotation
- Brake System: Equipped with band brake
Precision Tolerance
- Screw hole tolerance: ±0.1 mm
- Diameter tolerance: ±0.05 mm
- Length tolerance: ±0.05 mm
Screw hole positions and layouts can be fully customized according to customer drawings or requirements.
Key Features
- Stable Fixing for Rotary Die Boards
Designed to securely hold rotary die boards during die making, ensuring accurate alignment and stable operation. - Band Brake System

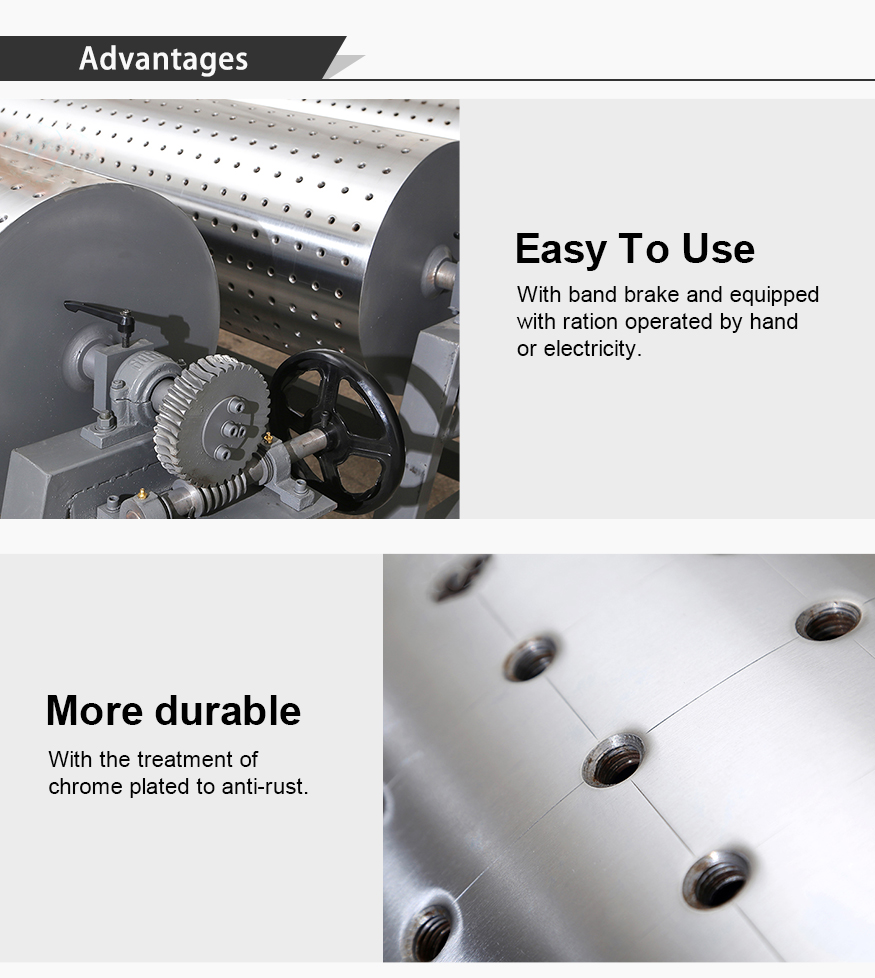

Equipped with a reliable band brake for safe and controlled rotation, operated manually or electrically. - High-Precision Machining
Tight tolerances guarantee smooth rotation and precise positioning, making rotary die making easier and more efficient. - Chrome-Plated Anti-Rust Surface
Improves durability, corrosion resistance, and service life in industrial environments. - Customizable Design
Diameter, length, screw hole layout, and operation mode can be customized to match different rotary die cutting requirements.

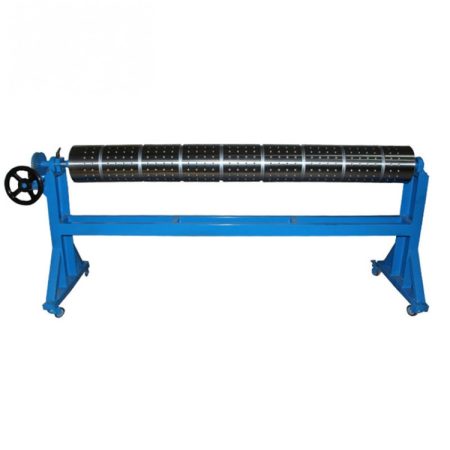

Cylinder Drum for Rotary Die
Applications
- Rotary die board fixing and preparation
- Rotary die cutting machine setup
- Corrugated packaging and carton die making
- Professional die-making workshops
Product Range
- Flat & rotary die boards
- Cutting rules & creasing rules
- Creasing matrix
- Anvil covers & doctor blades
- Manual die making machines
- Auto bending machines
- Sample making machines
- Nick grinders & waste cleaning machines
- Folding gluer machines
We are the general agent of Spanish Polycut Anvil Cover and American Trupoint Doctor Blade in China.
Our Advantages
- Factory-direct supply for complete die making solutions
- MOQ or NO MOQ available
- Delivery time: 7–30 days
- Skilled workers & strict quality management system
- Advanced production equipment (laser cutting, auto bender, sample maker, etc.)
- OEM & customized specifications supported
