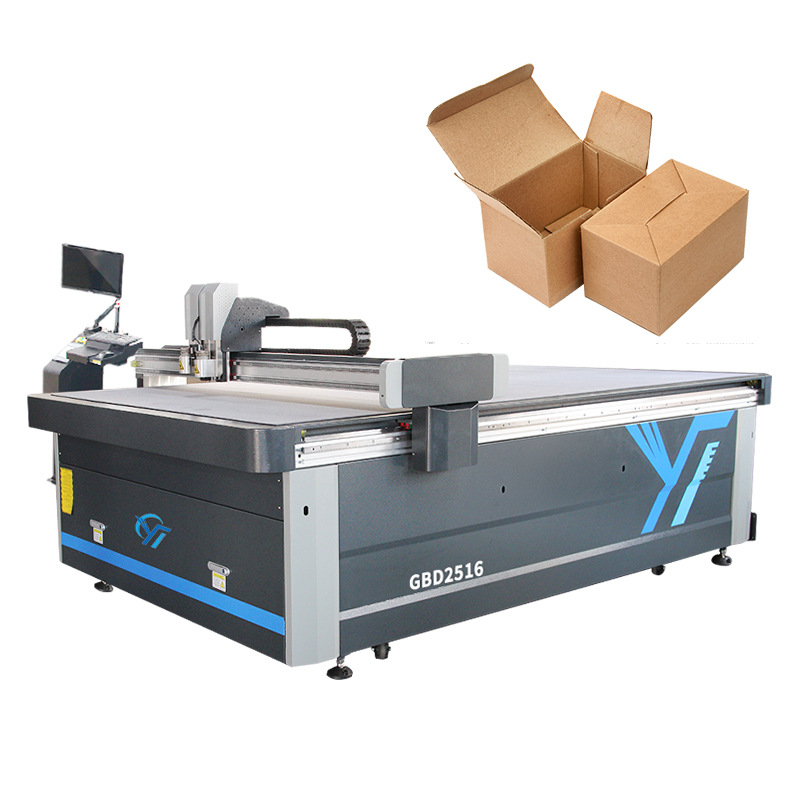

Corrugated Cardboard Box Sample Cutting Machine

Product Features

The YITAI Corrugated Cardboard Box Sample Cutting Machine is a high-precision CNC knife cutting machine for carton, paper cardboard box, and packing box samples. Designed for die-free sample making, this flat bed carton box die cut sample machine allows users to cut, crease, slot, and half-cut cardboard directly from digital files—no molds required.

This cardboard CNC cutting machine is ideal for packaging manufacturers, carton box factories, and box sample makers who need fast, flexible, and low-cost sample production.

Why Choose a Die-Free Box Sample Cutting Machine?

Tired of high mold costs and long lead times for every design change?
With YITAI’s digital cutter for gift box and carton samples, simply upload your design and start cutting immediately.

Benefits of Die-Free Sample Making

No dies required – eliminate mold costs completely
No skilled workers required – easy operation
Less material waste – precise digital cutting
Shorter lead time – save 1–3 days compared with die making
Safer operation – infrared safety sensors
Lower overall cost – ideal for small batches and customization

This makes the machine a perfect box sample cutting machine and carton box sample maker cutting machine.

Cardboard Box Sample Cutter – Machine Description

The YITAI Paper Cardboard Box Cutting Machine is a fully automatic cutting machine sample solution. It supports rapid prototyping for:

Cardboard box samples
Carton box samples
Packing box samples
Corrugated cardboard and honeycomb board

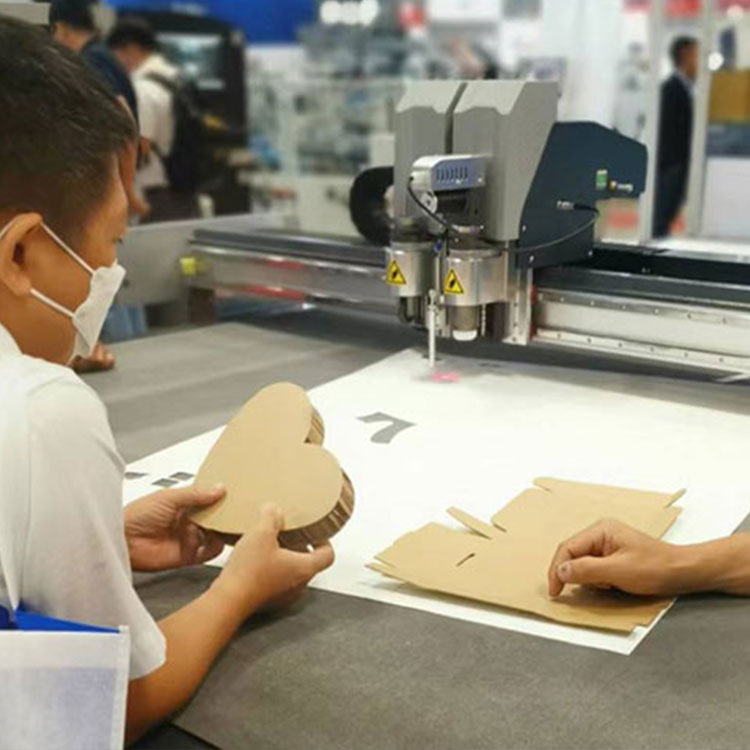

Once the drawing is uploaded, the machine cuts automatically with high accuracy. With this carton box cutting machine, you no longer need to worry about frequent size or shape changes.

Key Features of the Cardboard CNC Cutting Machine

No Mold Needed
The cardboard cutting machine works directly from digital files, saving time and tooling costs.
Multi-Tool System
One CNC knife box cutting machine supports multiple processes:
- Cutting
- Creasing
- Half cutting
- Dotted line cutting
- Slotting and V-cutting
High-Performance Servo Drive
Equipped with Japanese Mitsubishi servo motors and planetary reducers for higher torque, stability, and cutting power.
HIWIN Gear Rack Transmission
Compared with belt transmission, this system offers:
- Higher accuracy
- Larger load capacity
- Faster speed
- Longer service life
Vacuum Honeycomb Table
Aluminum honeycomb adsorption table with high-power vacuum pump ensures strong suction and flat material fixing.

Product Parameters – GBD2516 Carton Box Cutting Machine

Parameter	Specification
Model	GBD2516 Corrugated Cardboard Cutting Machine
Working Size	1600 × 2500 mm
Table Type	Auto feeding table / Flat table
Cutting Speed	Up to 1400 mm/s
Cutting Thickness	Max. 100 mm
Positioning Accuracy	±0.01 mm
Safety Device	Infrared sensors
Fixing Method	Vacuum table
Power	7.5 – 12.5 kW
Voltage	220V / 380V, 50Hz
Motor & Driver	Mitsubishi / Delta
File Formats	PLT, DXF, HPGL

Applications of the Box Sample Cutting Machine

The Corrugated Cardboard Honeycomb Board Box Sample Cutter can process:

Corrugated cardboard
Honeycomb board
Gray board
Printed cardboard
Hollow board
Composite paper

Widely used in:

Packaging and carton proofing
Color box and gift box sampling
POP display and shelf proofing
Corrugated furniture
Small-batch production and customization

This machine is a versatile corrugated box cutting machine and box packing cutting machine.

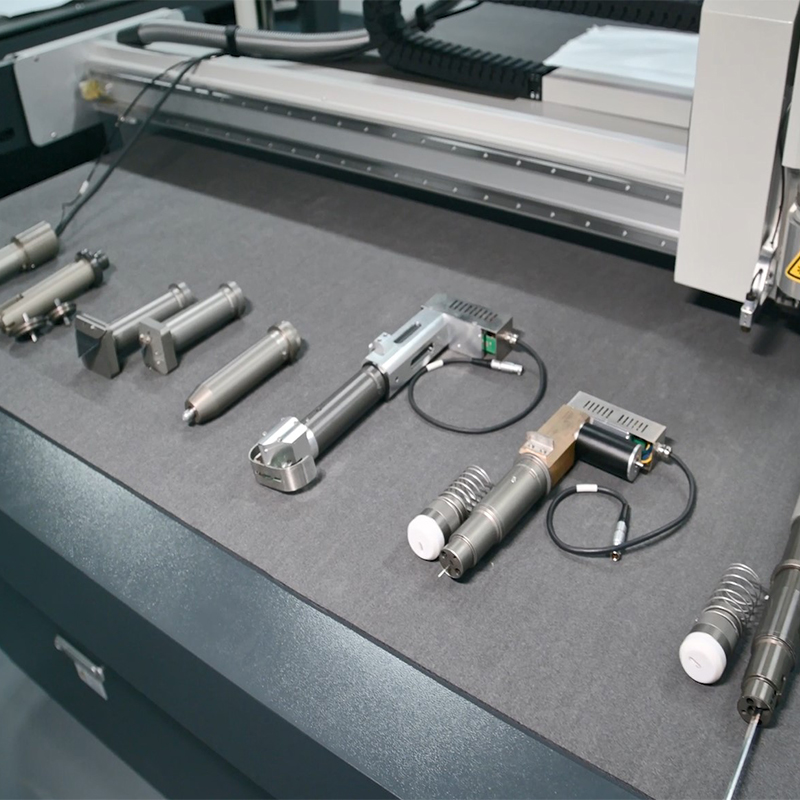

Optional Cutting Tools

Oscillating Knife – cutting and half-cutting corrugated cardboard and honeycomb board
Creasing Wheel – folding lines and easy-tear dotted lines
V-Cut Tool – slotting and bevel cutting
CCD Camera – contour cutting for printed cardboard
Pneumatic Knife – thick or hard cardboard and foam board

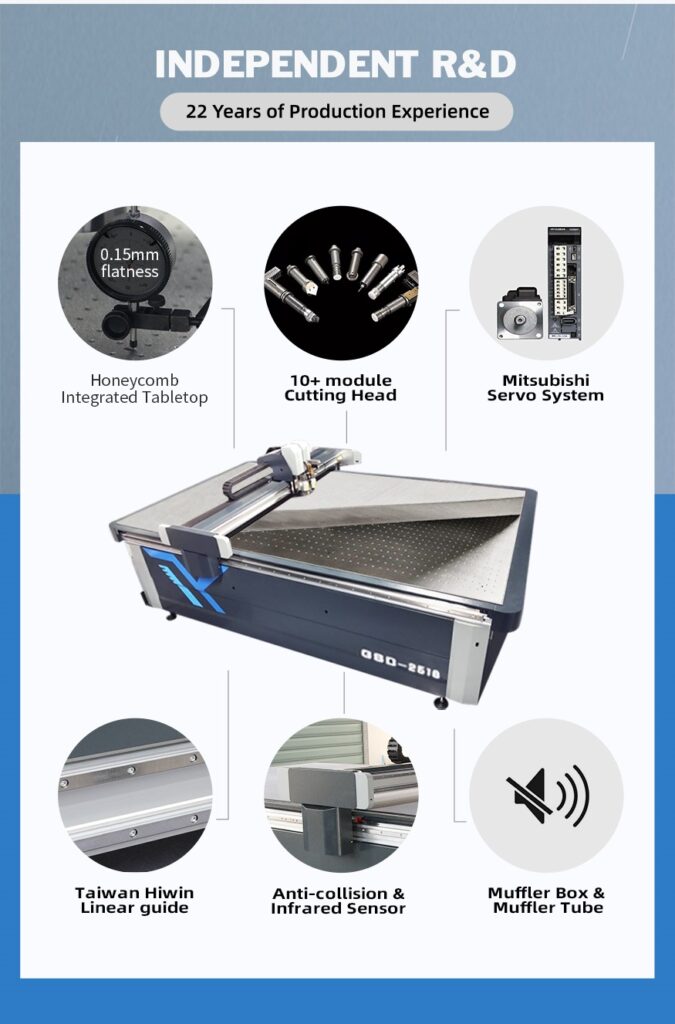

Core Components

Mitsubishi Servo System – fast response, high torque, stable performance
Integrated Honeycomb Table – ±0.15 mm flatness tolerance, 8-zone vacuum control
Taiwan HIWIN Linear Guides – high precision, low noise, long lifespan
Modular Cutting Head – 10+ tool modules, quick change in 20 seconds

Packing & Shipment

Moisture-proof plastic film protection
EPE foam for impact resistance
Export-standard fumigation-free wooden case

Maintenance

Keep the machine clean
Lubricate guide rails and racks every two weeks
Use standard lubricating oil (e.g. 5W–30)

About YITAI

Yitai Precision Machinery, founded in 2003, is a professional manufacturer of cardboard cutting machines, digital cutters, and CNC cutting systems.
We provide cutting solutions for over 2,300 materials and serve customers in 100+ countries, covering packaging, advertising, furniture, footwear, and more.
